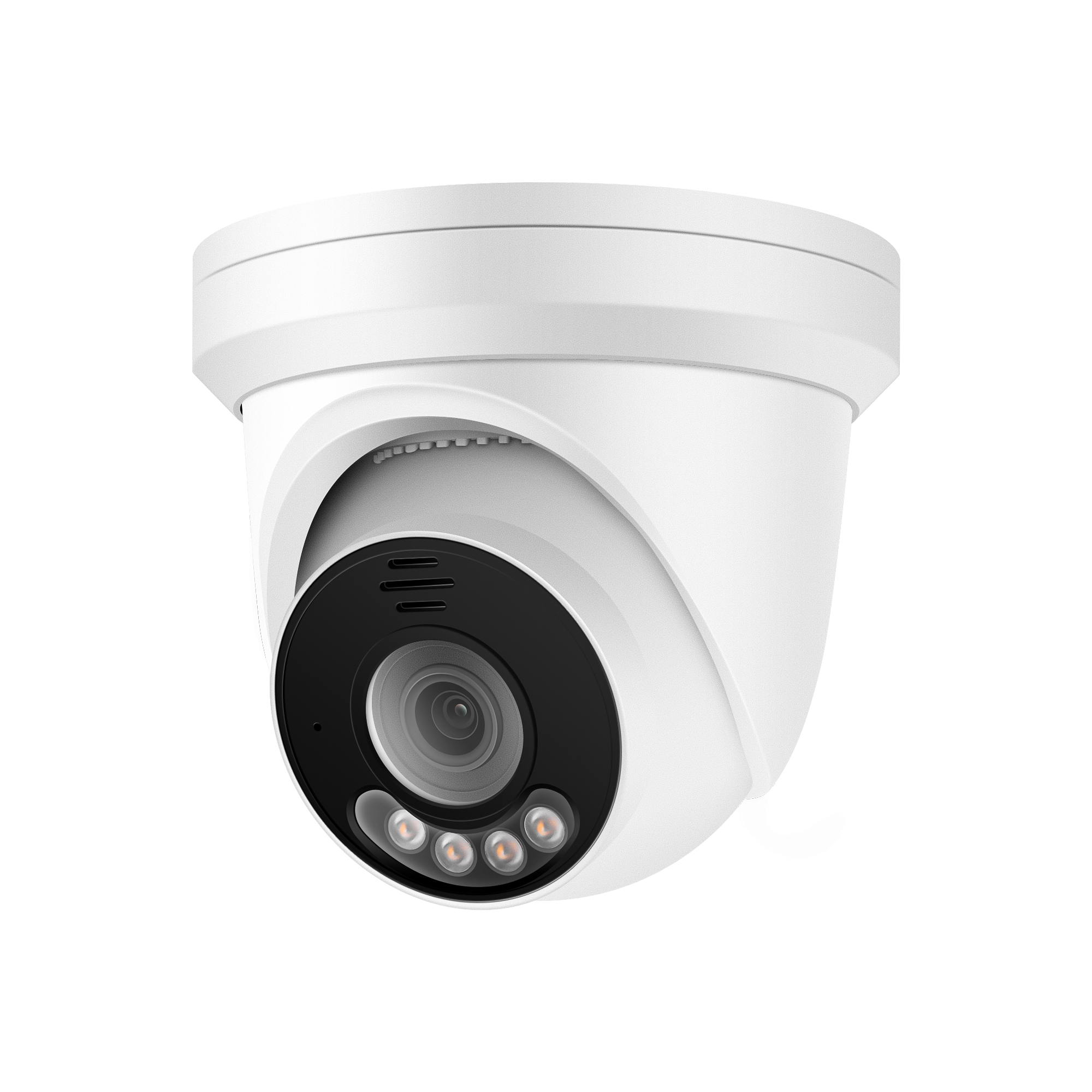

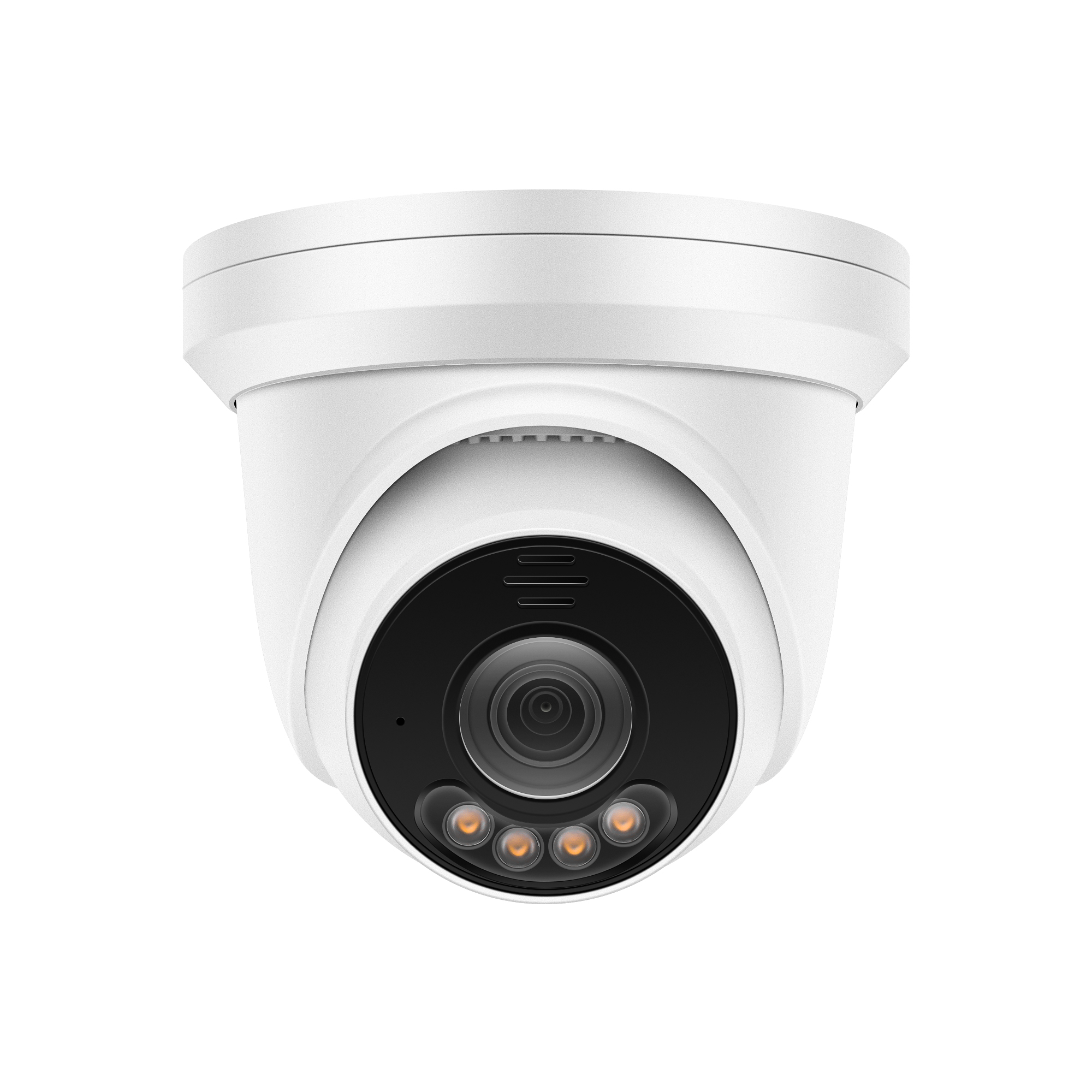

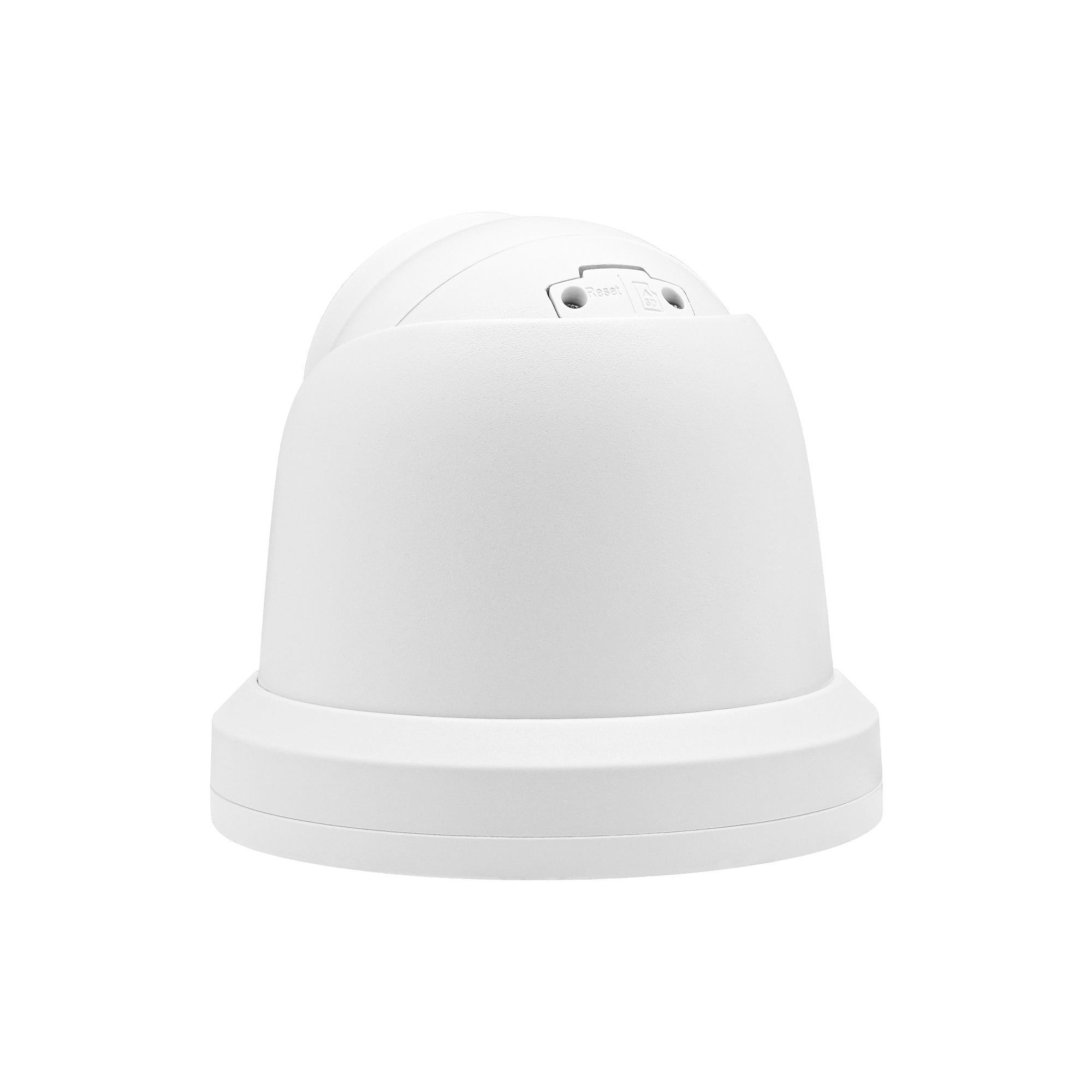

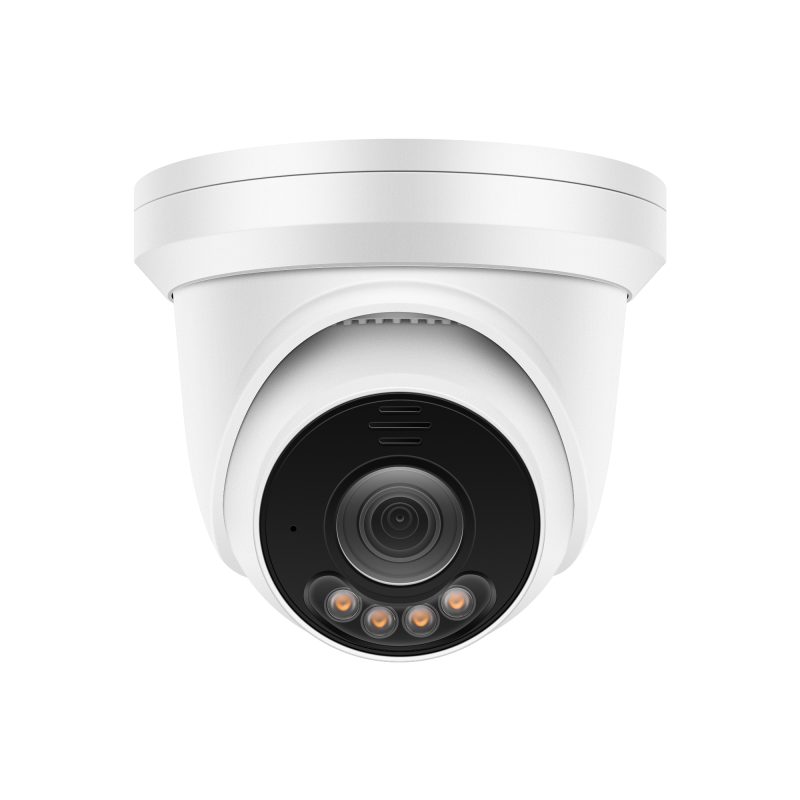

12MP 4000*3000 Resolution active deterrence Turret ip camera, 3.6-10mm 5x optical zoom turret IP Camera.
| Model | IP12MD99MAC |
| Camera | |
| Image Sensor | 1/2.3″ 12MP CMOS |
| Effective Pixels | 4000×3000 |
| Electronic Shutter | AUTO/Manual: 1/10s ~ 1/10000s, shutter threshold |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Light Control | Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination |
| License Plate Mode | Yes |
| Other | Multi-lines OSD, Custom Title, Privacy Mask, Flip, Reset button |
| Encode | |
| Video Standard | H.264/H.265/H.265+/MJPEG |
| Video Resolution | Main Stream: |
| 30fps@12MP(4000×3000)/3840×2160/3072×1728/2592×1944/2560×1440/2304×1296/1920×1080/1280×720 | |
| Sub Stream: | |
| 30fps@720×480/VGA(640×480)/640×360,480×360,CIF(352×288) | |
| Video Bitrates | 512Kbps – 12Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Yes, Audio Echo Cancellation |
| Built-in Speaker | Yes, Two-way audio |
| OSD Overlay | Title and Time overlay, Snapshot |
| Smart Detection | |
| Motion Detection | Support |
| Target Detection | Human, vehicle, non-motor vehicle |
| Led | |
| IR Led | 4 pcs IR&Warm-light dual-wick Led |
| IR Distance | 30-40 M |
| Lens | |
| Focal length | 3X: 3.6 -10 mm AF lens |
| Language | |
| English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, etc. | |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/NFSv3/SMTP/DHCP/NTP/RTMP, etc. |
| P2P | Yes |
| Web | IE, Firefox, Chrome, Edge, Safari, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE 802.3af/at 48V |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 10 W |
