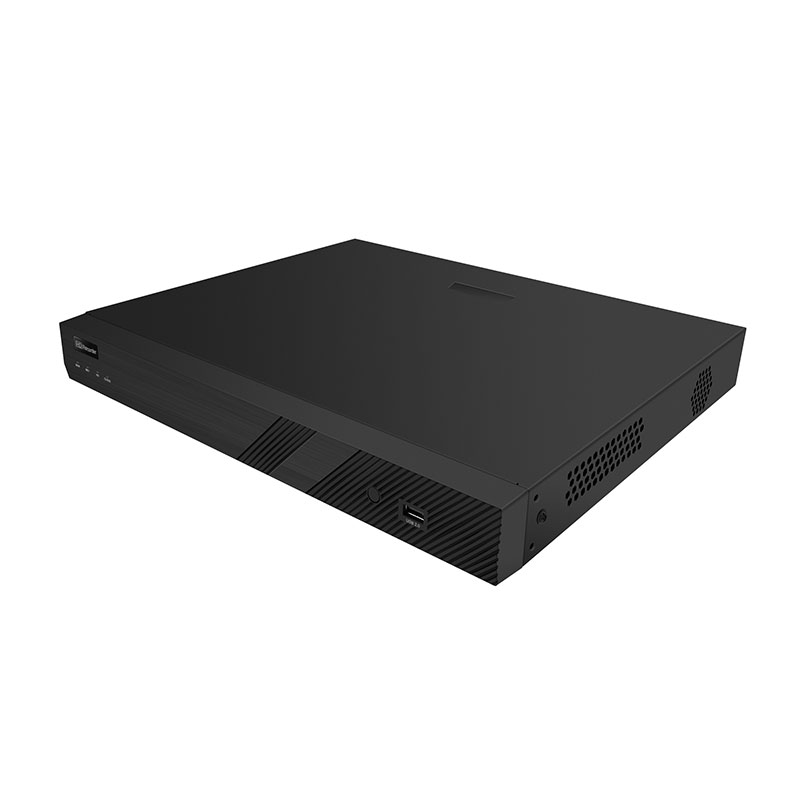

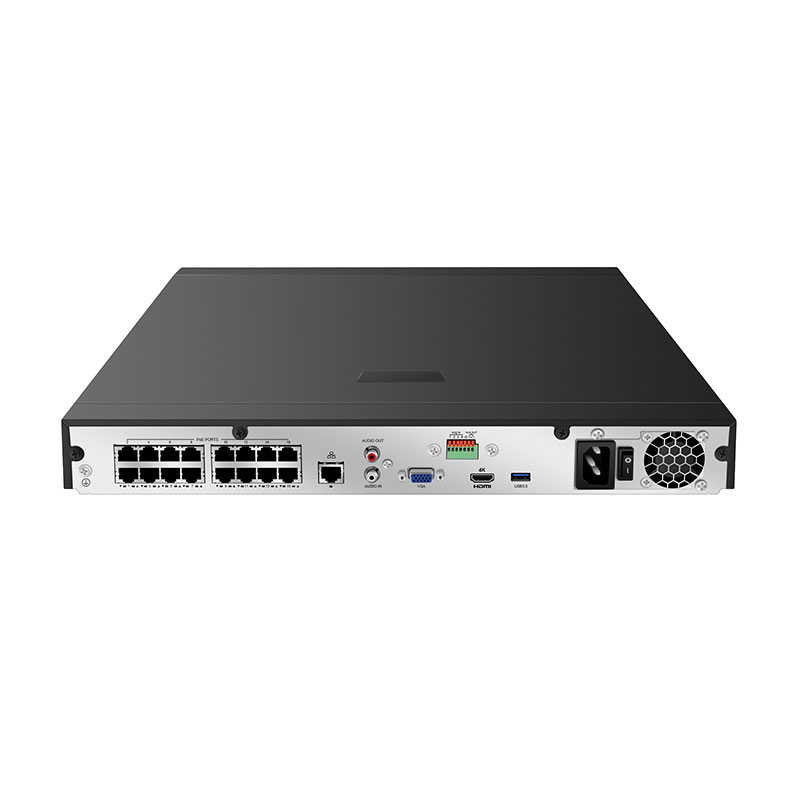

16CH 4K PoE NVR 2 SATA port
0 16ch PoE NVR, Two sata port, support 4k video in.- SKU: NVR4K16H2-P
- Categories:Network Video Recorder, POE NVR
Key feature:
- Support Ultra265/H.265/H.264 video formats
- 16-channel input
- Plug & Play with 8/16 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 2 SATA HDDs, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specification:
| Model | NVR4K16H2-P |
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 160Mbps |
| Outgoing Bandwidth | 96Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| VGA: | |
| 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50, 1920X1080@60 HDMI: | |
| HDMI/VGA Output | 4k (3840×2160@30), 4k (3840×2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50, |
| 1920X1080@60 | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 |
| Decoding | |
| Decoding format | Ultra265/H.265/H.264 |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| 1 x 4K@30, 2 x 4MP@30, 3 x | |
| Capability | 3MP@25, 4 x 1080P@30, 8 x |
| 720P@30,16 x D1 | |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | up to 10TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| PoE | |
| Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Max 30W for single port | |
| Max Power | Max 240W in total |
| Supported Standard | IEEE 802.3af/at |
| General | |
| 220V AC | |
| Power Supply | Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 380mm ×315mm × 53mm (15.0″ × 12.4″ ×2.1″) |
