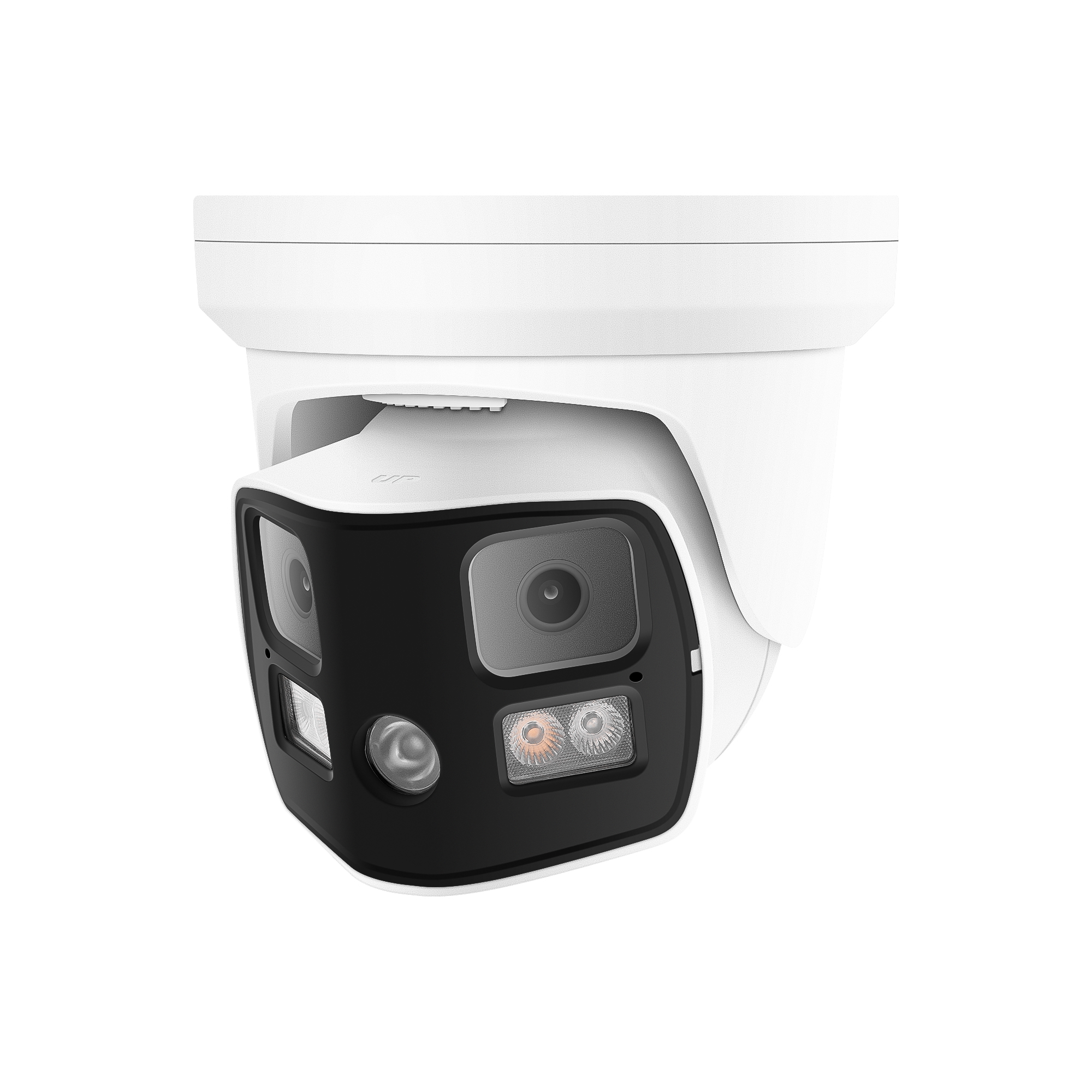

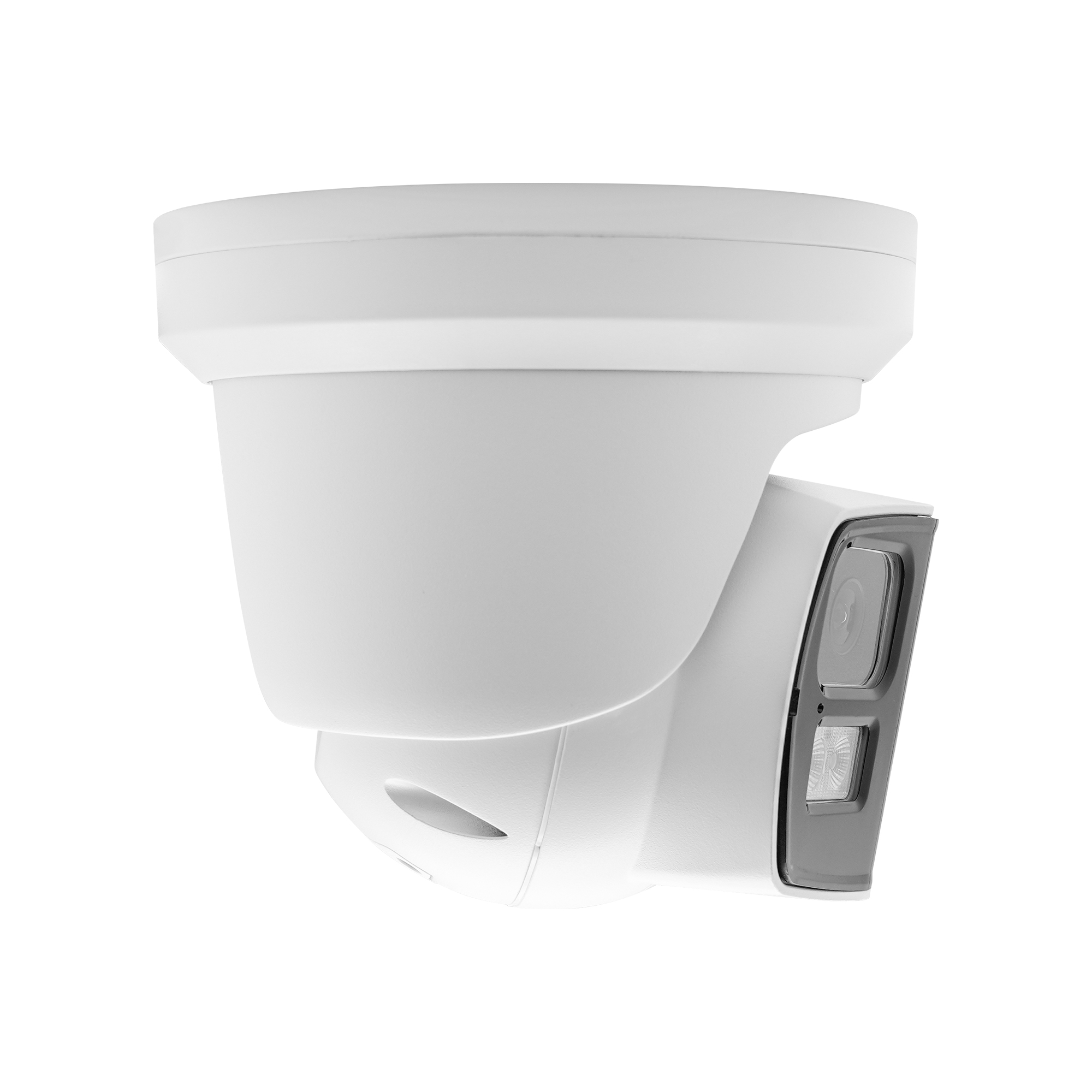

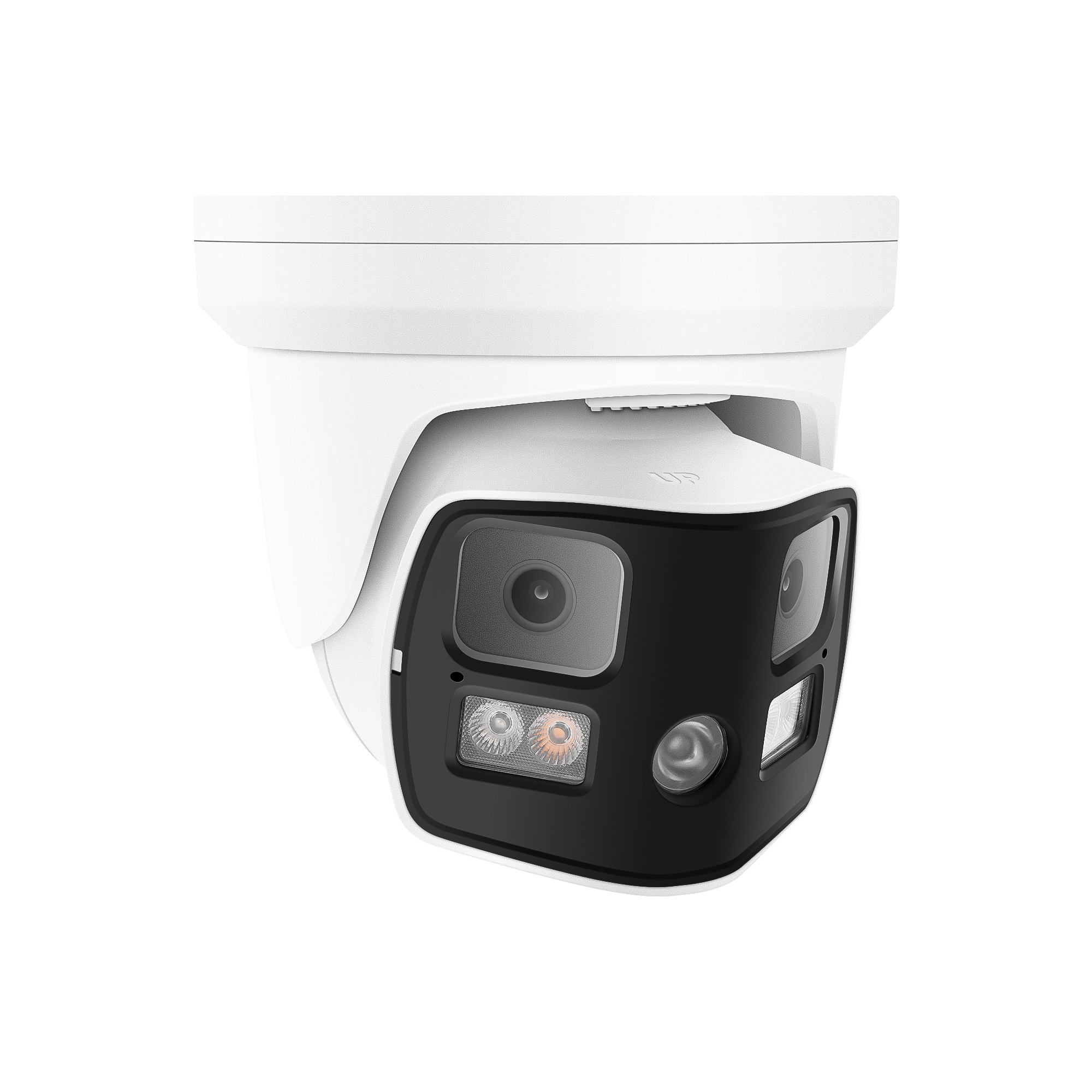

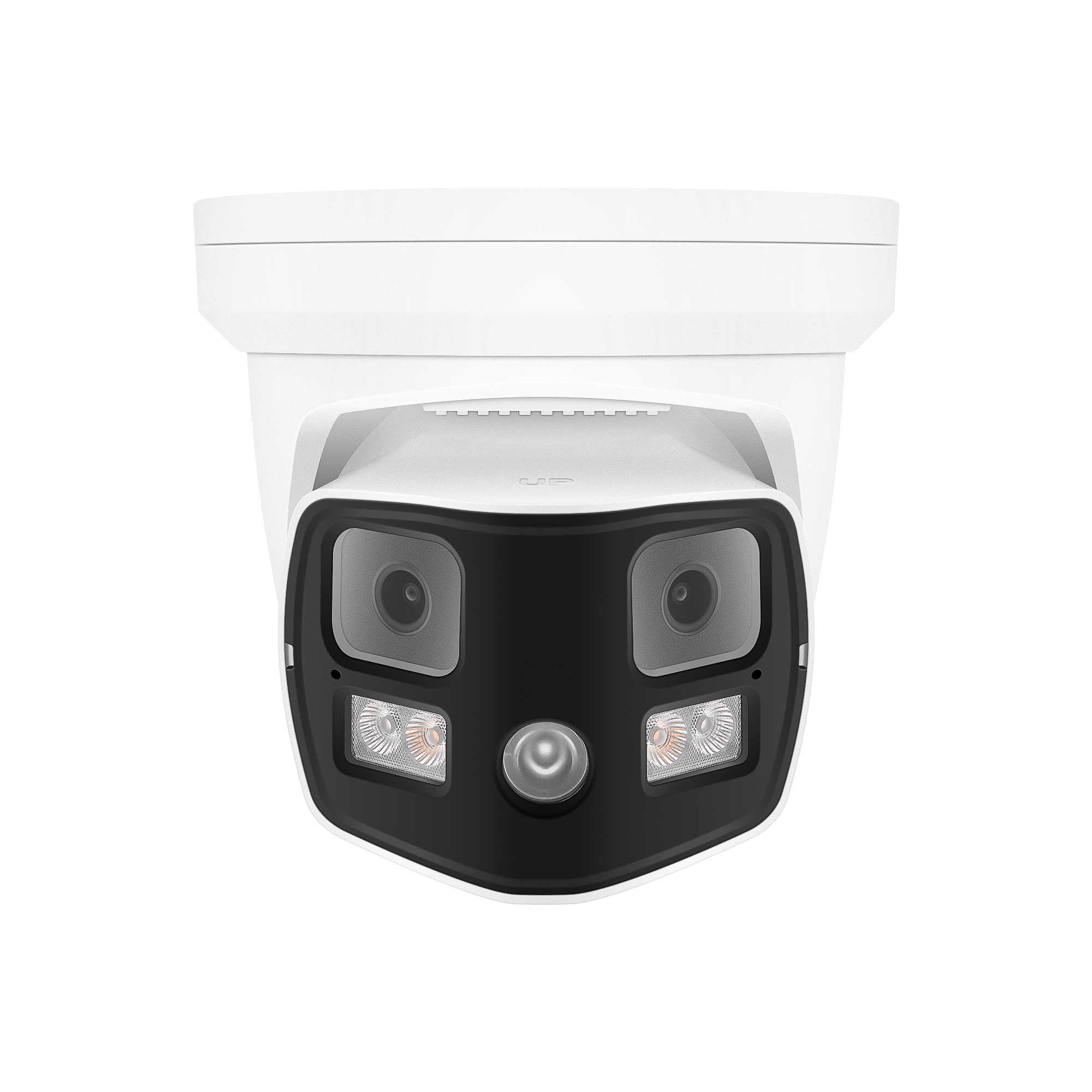

16MP Dual-lens 180 degree viewing angle hybrid light IP Camera

0 Smart AI 16MP dual-lens ip camera, built-in PoE, Mic, face detection, Intrusion detection

Features:

*1/2.7″ CMOS sensor
*16MP wide-view resolution 7680 x 2160P
*180 °wide-angle
*Face Detection,Human&Vehicle Detection, Line Crossing, Area Entry/Leaving Detection, Area Intrusion Detection
*Low illumination 0.01Lux
*Day/Night, AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
*Motion Detection, Privacy Mask,Image Mirror
*RTSP and Onvif 23.12 Compatible
*H.265/ H.264 Dual-stream Media Server
*Easy-to-use P2P Cloud Service
*Multi web browser, PC Client, Mobile APP, Remote access
*RJ45 100mbps Network Port, IEEE802.3af PoE
*Lightning Protection 4000V
*Strong Water-proof Housing, IP67
*2 pcs Warm light + 3 pcs IR Array leds,IR distance:25-30M,White light distance:25-30M
*Warm Light on and Colorful Imaging When Detect Human Body or Vehicle
*2*F1.6 2.8 mm fixed lens
*Two Way Audio / SD Slot / Reset Button
*Support Audio Alarm to Warn Intruders off

AI Features:

Human Body & Vehicle Detection; Cross Line, Intrusion, Enter Area, Leave Area, Face Detection

Specification:

Model	SA-IP16MD99GADL
Camera
Image Sensor	1/2.7″ 8MP GALAXYCORE GC8613 CMOS x2
Soc Chip	Sigmastar SSC379G
Effective Pixels	7680(H)×2160 (V)
Exposure Shutter	AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable
Day/Night	Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz)
Image Adjust	Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable
White Balance	AWB/MWB
WDR	No
Light Mode	Smart(dual-light) / IR / White light, adjustable
Light Control	Auto/Manual, Brightness level (0-100%) adjustable
DNR	2D/3D DNR
Encode
Video Standard	H.264/H.265/MJPEG
Video Resolution	Main Stream: 20fps@16MP(7680×2160)(default)/1920x1080P
	Sub stream: 20fps@1024×480(default)/768×360
	(*Note:MJPEG max 1080P)
Video Bitrates	Main stream: 64kbps-12Mbps
	Sub stream: 64kbps-2Mbps
	VBR/CBR , quality(1-9), GOP(1-128)
Image Snapshot	Main stream(HD)/Sub Stream(SD) snapshot
Image Rotation	No
Border Crop	No
Image Mirror	horizon / vertical / horizon&vertical adjustable
OSD Overlay	Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD
Privacy Mask	4 areas
Region of Interest	ROI: Each stream support 8 areas
Audio Standard	G.711-u/G.711-a/AAC, AEC
Built-in Mic	Yes
Built-in Speaker	Yes
Stitch Distance adjust	1 – 50000mm adjustable
Led
IR Led	3 pcs IR array LEDs
White Led	2 pcs warm-light LEDs
Distance	25-30 M
Lens
Focal length	F1.6 2.8mm fixed
FOV	H:180°
Language
English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc.
Smart Detection
Motion Detection	Yes
Digital IO Alarm	1 pair Alarm-in/Alarm-out, normally open/normally close (optional)
Human Vehicle Detection	Yes, (2-20 meters)
Cross Line Detection	Yes, 4 lines
Perimeter protection	Yes, 4 areas
Face Detection	Yes, (1-5 meters)
Target Detection Type	Human Shape, vehicle, non-motor vehicle, Pet, Face(12px-1000px)
Trigger Action Linkage	Snapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage (NFS)
Simultaneous Detection	Maximum 16 targets simultaneous detection
Storage Type	Schedule/Trigger: Micro-SD(512G) , Email, FTP, NAS (NFS)
Reset Button	Yes (with reset voice)
Network Services
Protocol	HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS
IP Address Filtering	Yes (Allow list, Deny list)
P2P Mobile APP	Android, IOS
Web Access	IE, Firefox, Chrome, Edge, Safari, etc.
Web Access	(Windows/Linux/Mac/Chromebook/Tablet/Mobile phone)
PC Tool	Windows, Mac
ONVIF	23.12 compatible (profile S G T M)
General
Network Port	1-RJ45, 100Mbps, POE(IEEE802.3af)
Power Supply	12 VDC ± 10%
Power Consumption	< 12 W
Operating Temp.	-20℃-(+60)℃, 10%-90%RH
