Key features:

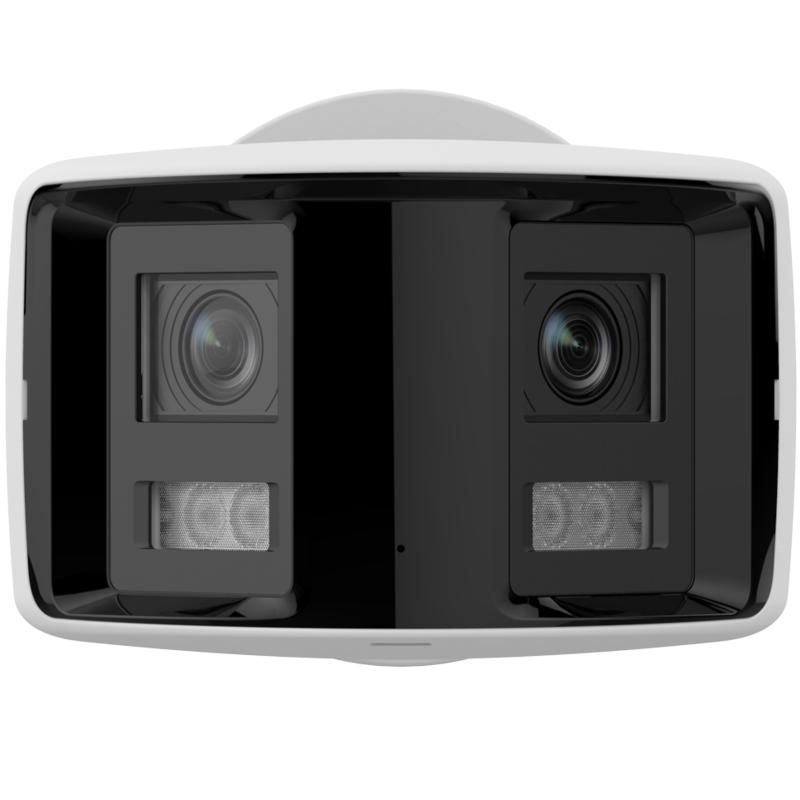

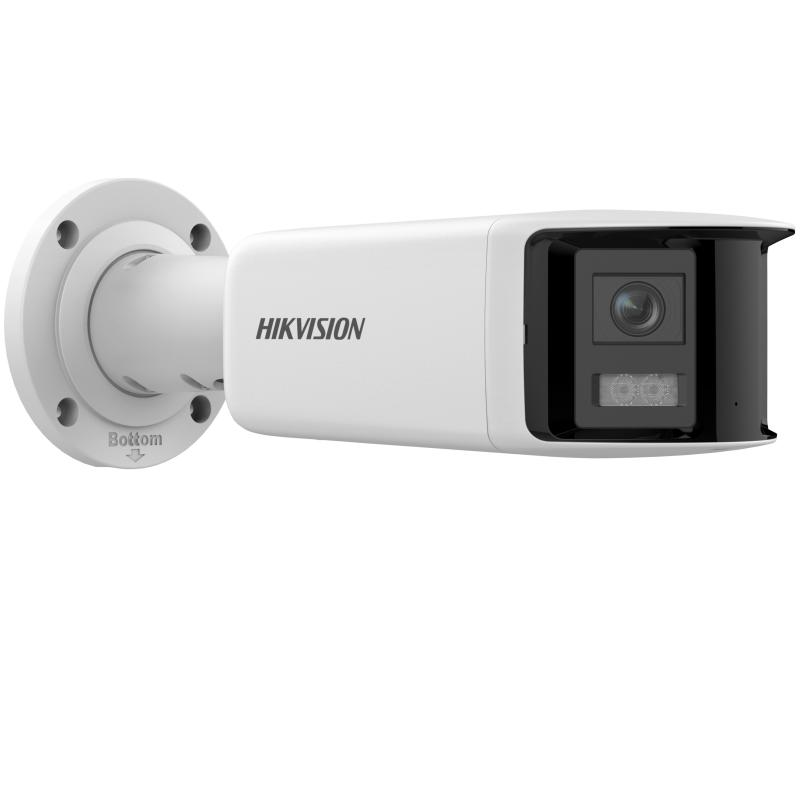

6 MP Panoramic AcuSense Fixed Bullet Network Camera
*High quality imaging with 6 MP resolution
*Excellent low-light performance with powered-by-DarkFighter technology
*One image that presents all the scenes covered by the camera
*Clear imaging against strong back light due to 120 dB true WDR technology
*Focus on human and vehicle targets classification based on deep learning
*Active strobe light and audio alarm to warn intruders off
*Provide real-time security via built-in two-way audio
*Water and dust resistant (IP67)
| Camera | |
| Image Sensor | 2 × 1/2.5″ Progressive Scan CMOS |
| Max. Resolution | 3632 × 1632 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day ＆ Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, dual lens: 2.8 mm |
| Focal Length ＆ FOV | 2.8 mm, horizontal FOV: 180°, vertical FOV: 81° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm, D: 42 m, O: 16.5 m, R: 8 m, I: 4 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (3632 × 1632) |
| 60 Hz: 20 fps (3632 × 1632) | |
| Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) |
| 60 Hz: 20 fps (1200 × 536, 960 × 432) | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-stream: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722. 1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets | |
| Protocols | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK |
| User/Host | Up to 32 users |
| 3 user levels: administrator, operator, and user | |
| Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5),
watermark, IP address filter, basic and digest authentication for |
|
| HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,
control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
|
| Security | |
| NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), | |
| Network Storage | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Plug-in required live view: IE 10, IE 11, | |
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, |
| Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ | |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1 W, max. sound pressure level: 10 cm: 97 dB |
| 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, | |
| Audio | 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VAC/VDC, 1 A) |
| Reset Key | Yes |
| Event | |
| Motion detection (support alarm triggering by specified target types (human and vehicle)),
alarm input and output,flashing alarm light output, audible alarm output, exception |
|
| Basic Event | |
| Smart Event | scene change detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing |
| Deep Learning Function | |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting |
| Support alarm triggering by specified target types (human and vehicle) | |
