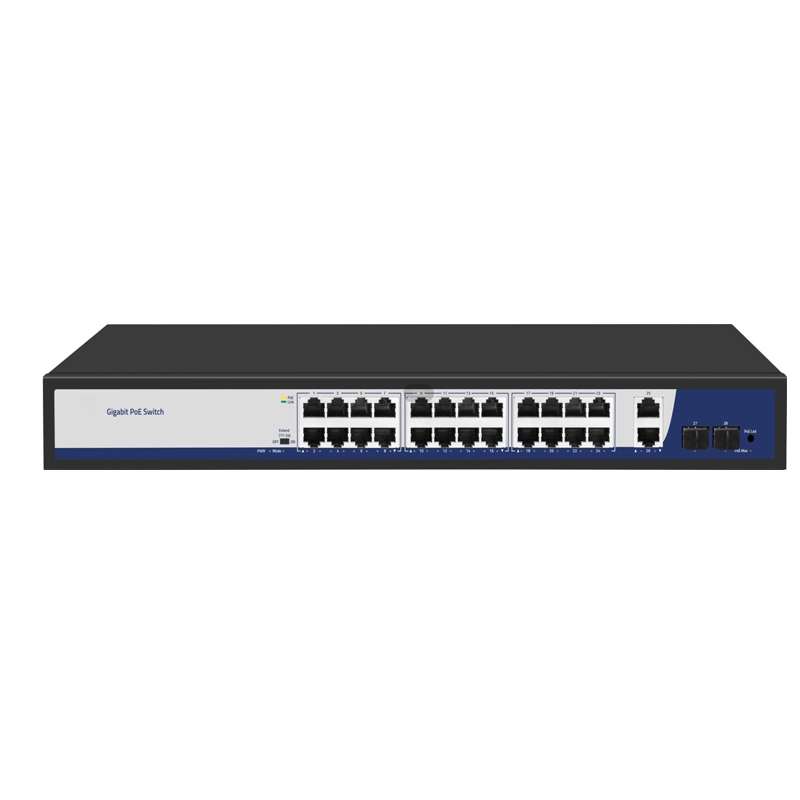

24CH Gigabyte PoE switch 400W
0 *24* 10/100/1000M PoE Ports+2*Gigabit Uplink+2* Gigabit SFP Ports； POE power: maximum 380W- SKU: PW24G-400W
- Category:Accessories
Key Features:
*24* 10/100/1000M PoE Ports+2*Gigabit Uplink+2* Gigabit SFP Ports；
*Comply wit IEEE802.3, IEEE802.3u, IEEE802.3ab
Standard;
*Ports 17~24 in Extend mode;
* POE priority is supported, from port 1 to port 16, which is enabled by default；
* Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex;
* Zero configuration feature, automatically supplied to
adaptive equipment;
* Panel indicator monitoring status and help failure
analysis;
* With DIP switch, support Default and Extend modes;
* Support port lightning surge: common mode 4KV, differential mode 2KV; Electrostatic ESD: air 8KV, contact
6KV
| I/O Interface | |
| Power | AC INPUT ( 100-240 V) |
| Ethernet | 24*Gigabit PoE Ports |
| 2*Uplink ports | |
| 2*Gigabit SFP Ports | |
| Chipset | EN8850DH ， RTL8238B |
| Performance | |
| Bandwidth | 56Gbps |
| Packet Forward Rate | 41.644Mpps |
| Package Cache | 3Mbit |
| MAC Address | 8K |
| Forwarding Mode | Store and forward |
| Standard | |
| Network Protocol | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE802.3ab (Gigabit Ethernet) | |
| IEEE802.3x (Flow Control) | |
| IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
| PoE protocol | IEEE802.3af ( 15.4W) |
| IEEE802.3at ( 30W) | |
| POE port output voltage: DC 44-57V | |
| POE power supply core: 1/2 +; 3/6- | |
| Industry Standard | EMS: EN61000-4-2 (ESD)、 |
| IEN61000-4-5 ( Surge) | |
| Network medium | 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) |
| 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) | |
| 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) | |
| Optical Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um |
| Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um | |
| Certification | |
| Safety Certificate | CE/FCC/ROHS |
| Environment Standard | |
| Working Environment | Working temperature: -10~50°C |
| Storage temperature: -40~70°C | |
| Working humidity: 10%~90%, non-condensing | |
| Storage humidity: 5%~95%, non-condensing | |
| Physical Specification | |
| Structure Size | Product Dimensions: 440*205*44mm |
| Package Dimensions: 500*290*85mm | |
| Product N.W: 2.886KG | |
| Product G.W: 3.406KG | |
| Packing Info | Carton Dimensions: 520*445*310mm |
| Packing Quantity: 5 PCS | |
| Packing Weight: 18.03KG | |
| Power Voltage | Input Voltage: AC 100-240 V 50-60Hz |
| Supply Power: 52V /7.69A | |
| Power Consumption | Product power: maximum 15W |
| POE power: maximum 380W | |
| Package List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc |
| Indicator | |
| LED Indicator | PWR ( Power) ， 1-28 Green Light(Link&Data) ， 1-16 (Yellow Light) ， POE Led Key |
| PWR | On: Powered on |
| Off: Powered off | |
| 1-28 Green | On: Link normal |
| Light(Link&Data) | Off: Link blocked |
| Flashing: Data transmitting | |
| PoE Max POE power light | Off: indicates PoE power usage is less than 90% |
| Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% | |
| On: indicates that PoE power is used at 95%<P <100% | |
| 1-24 (Yellow Light) | On： POE power supply is norma |
| Off： POE not powered | |
| Mode DIP Switch light | On： Extend on |
| Off： Extend off | |
| PoE Led Key | Dual color light selection: default green (link data), switch yellow light (PoE) |
| OFF：common mode, all interfaces can communicate with each other, the
transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled |
|
| ON: Link extension mode, 17-24 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled; | |
| Extend DIP Switch | |
