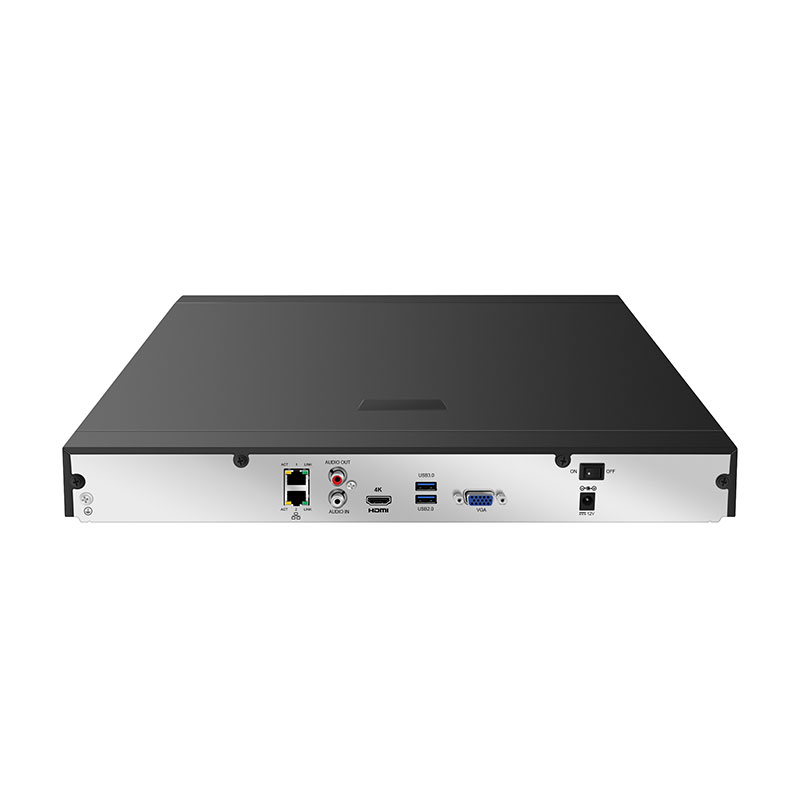

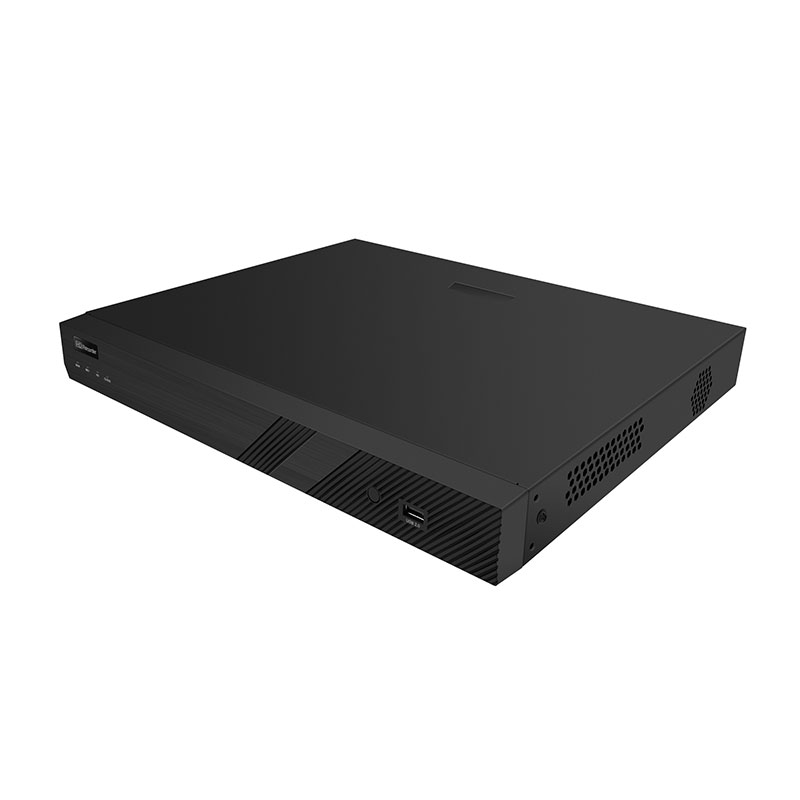

32ch NVR 2 SATA Ports
0 32ch NVR, Two sata ports, support 4k video in.- SKU: NVR4k32H2
- Categories:Network Video Recorder, No POE NVR
Key feature:
- Support Ultra265/H.265/H.264 video formats
- 32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- Accurate retrieval, instant playback
- 2 SATA HDDs, up to 6TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrad
Specification:
| Model | NVR4k32H2 | |
| Video/Audio Input | ||
| IP Video Input | 32-ch | |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming bandwidth | 160Mbps | |
| Outgoing bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: | |
| 4K (3840×2160)@30, 1920x1080p@60, 1920x1080p@50, 1600×1200@60, 1280×1024@60, 1280×720@60, 1024×768@60 | ||
| VGA: | ||
| 1920x1080p@60, 1920x1080p@50, 1280×1024@60, 1280×720@60, 1024×768@60 | ||
| Audio Output | 1-ch, RCA | |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF | |
| Synchronous Playback | 32-ch | |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 | |
| Decoding | ||
| Decoding format | Ultra265/H.265/H.264 | |
| Live view/ Playback | 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF | |
| Capability | 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1 | |
| Hard Disk | ||
| SATA | 2 SATA interfaces | |
| Capacity | up to 6TB for each disk | |
| Smart | ||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | |
| VCA Search | Face search, Behavior search | |
| Statistical Analysis | People counting | |
| External Interface | ||
| Network Interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces | |
| USB Interface | Rear panel：1 x USB2.0, 1 x USB3.0 Front panel：1 x USB2.0 | |
| General | ||
| Power Supply | 12V DC | |
| Power Consumption: ≤ 15W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 380mm × 315mm ×53mm (15.0″ × 12.4″ ×2.1″ ) | |
| Weight ( without HDD ) | ≤ 2.48 Kg (5.47 lb ) | |
