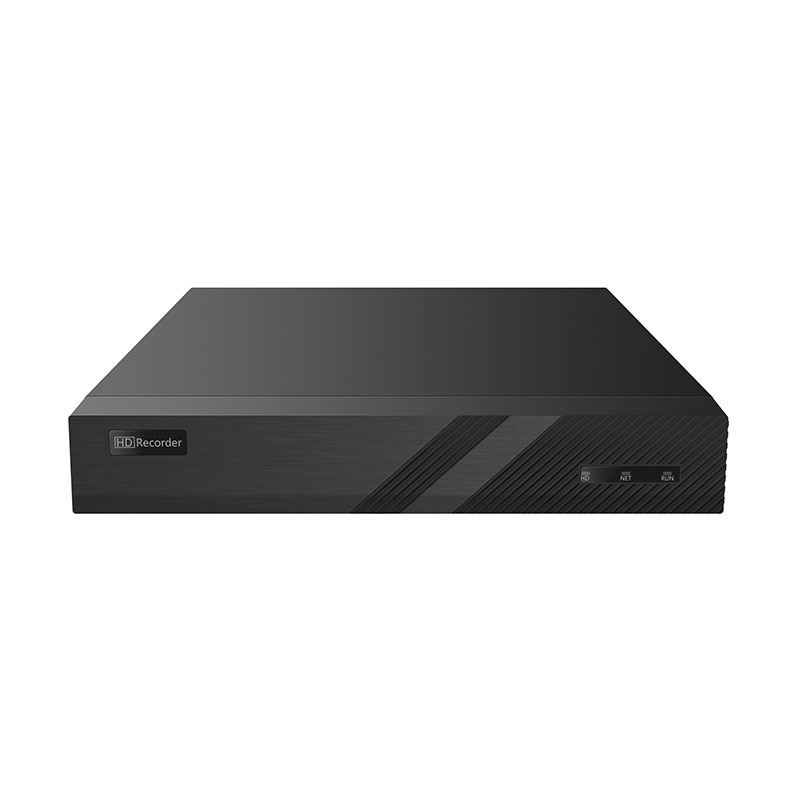

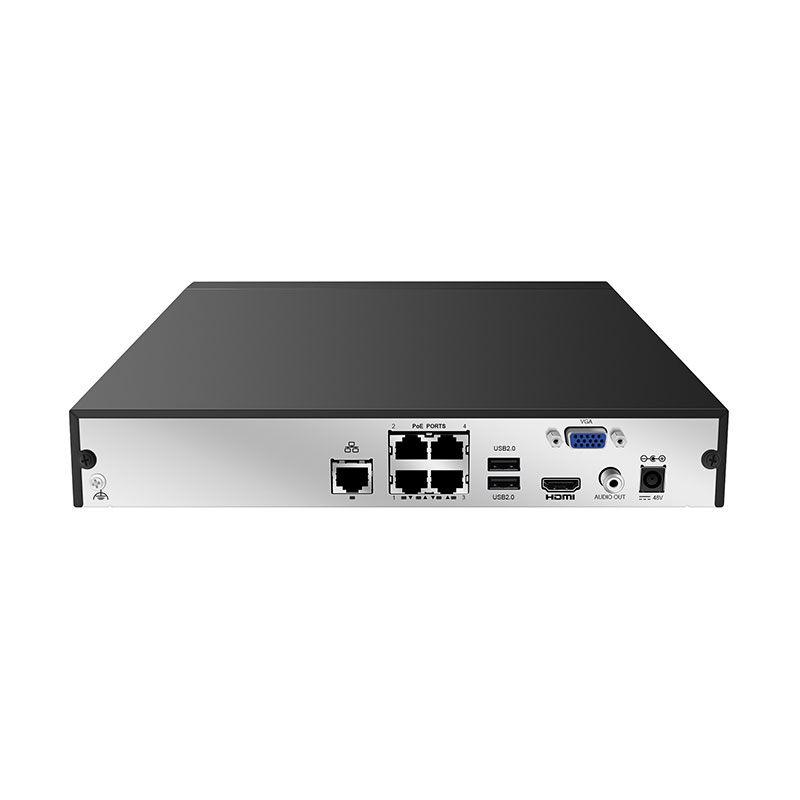

4ch 4k PoE NVR
0 4ch PoE NVR, 1 sata ports, support 4k video in.- SKU: NVR4K04H1-P-L
- Categories:Network Video Recorder, No POE NVR
Key feature:
- Support Ultra 265/H.265/H.264 video formats
- 4/8-channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- 1 SATA HDDs, up to 8TB
- Support cloud upgrade
Specification:
| Model | NVR4K04H1-P-L |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | ￥128.00 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Video/Audio Output | |
| HDMI: | |
| 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, | |
| HDMI/VGA Output | 1280×720/60Hz, 1024×768/60Hz VGA: |
| 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-ch |
| Liveview display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x3MP@25, 4 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interfaces, Up to 8TB for each disk |
| Capacity | (The maximum HDD capacity varies with environment temperature) |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection |
| VCA Search | Behavior Search |
| Smart Intrusion Prevention (SIP) by Camera | 4-ch(supports channel 1-4; Alarm only, no image) |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
