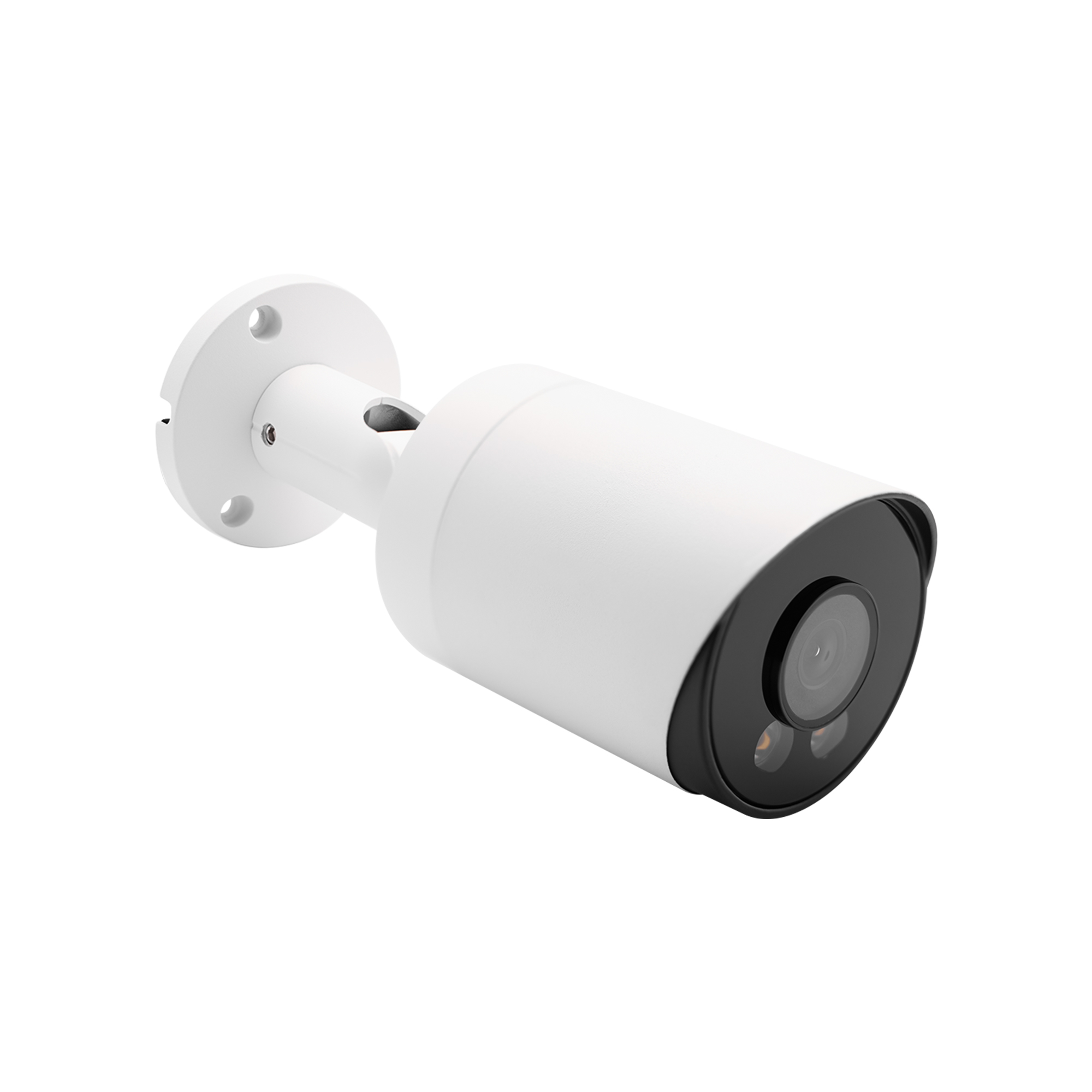

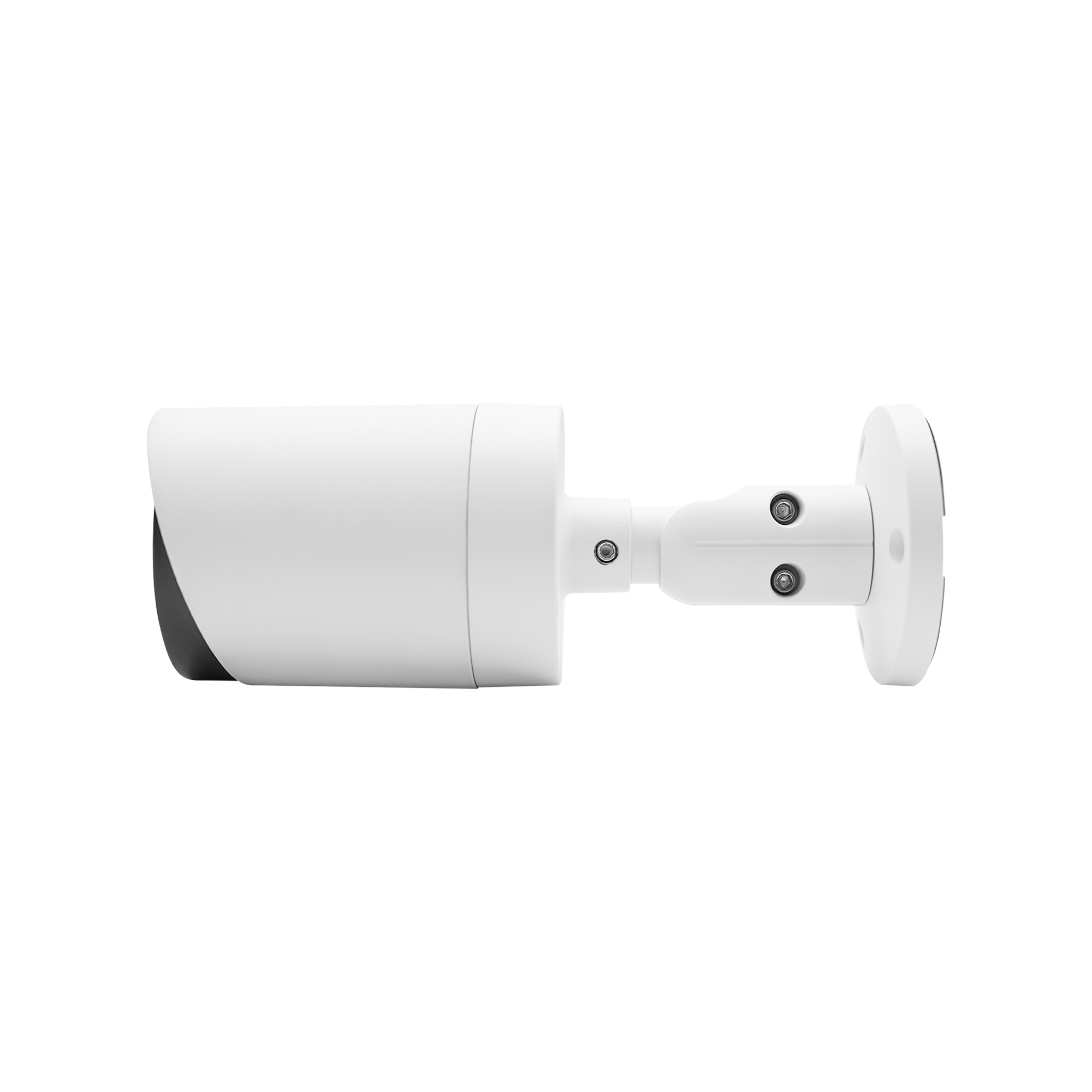

4MP Human & Vehicle Detection infrared version PoE outdoor IP Camera
0 Smart AI 4MP infrared ip camera, built-in PoE, Mic, human/vehicle detection, Intrusion detection- SKU: SA-IP4MB49E
- Categories:Infrared IP Camera, POE IP Camera
Features:
- 1/3″ CMOS sensor
- 4MPresolution 2560x1440P
- Human&Vehicle Detection, Line Crossing, Area Entry/Leaving Detection, Area Intrusion Detection
- Low illumination 0.01Lux
- Day/Night, AWB/MWB,2D/3D-DNR
- Motion Detection,Privacy Mask,Mirror
- RTSP and Onvif 23.12 Compatible
- 265/ H.264 Dual-stream Media Server
- Easy-to-use P2P Cloud Service
- Multi web browser, PC Client, Mobile APP,Remote access
- RJ45 100mbps Network Port, IEEE802.3af PoE
- LightningProtection 4000V
- Strong Water-proof Housing, IP67
- 2pcs Array IR LEDs,IRDistance:20-30M
- 2.8mm / 3.6mmFixed Lens Optional,default in 3.6mm
AI Features:
Human Body & Vehicle Detection; Cross Line, Intrusion, Enter Area, Leave Area
Specification:
| Model | SA-IP4MB49E |
| Camera | |
| Image Sensor | 1/3″ 4MP Smartsens SC4336P CMOS |
| Soc Chip | Sigmastar SSC377 |
| Effective Pixels | 2560(H)×1440 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity |
| anti-flicker(Auto/50Hz/60Hz) | |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| WDR | No |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream:30fps@4MP(2560×1440)(default 25fps)/3MP(2304×1296)/1080P |
| Sub stream: 30fps@QVGA(640×360)(default 25fps)/CIF(352×288) | |
| Video Bitrates | Main stream: 64kbps-8Mbps |
| Sub stream: 64kbps-2048kbps | |
| VBR/CBR , quality(1-9), GOP(1-128) | |
| Image Rotation | No |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC |
| Built-in Mic | Yes |
| LED and Distance | |
| LEDs | 2pcs Array IR LEDs |
| IR Distance | 20-30M |
| Lens | |
| Focal length | 2.8mm / 3.6mm Fixed Lens Optional, default in 3.6mm |
| Language | |
| English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. | |
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close (optional) |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | No |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet |
| Trigger Action Linkage | Snapshot, Record, Relay(Red-blue Led flash) optional, White LED Flash, Voice siren, Micro-SD, Email, FTP |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Email, FTP, NAS(NFS) |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. |
| (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) | |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
