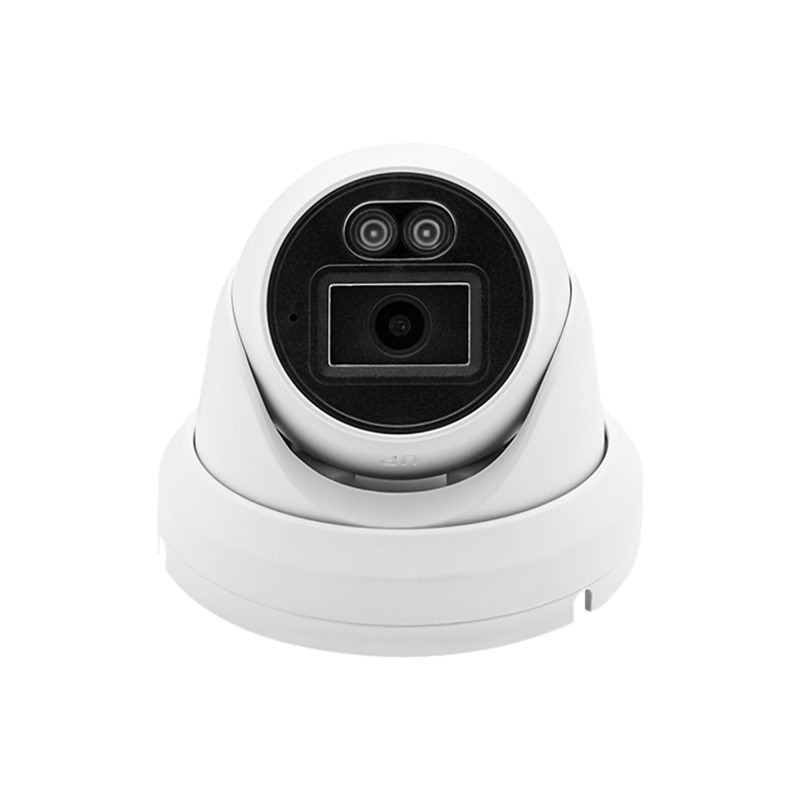

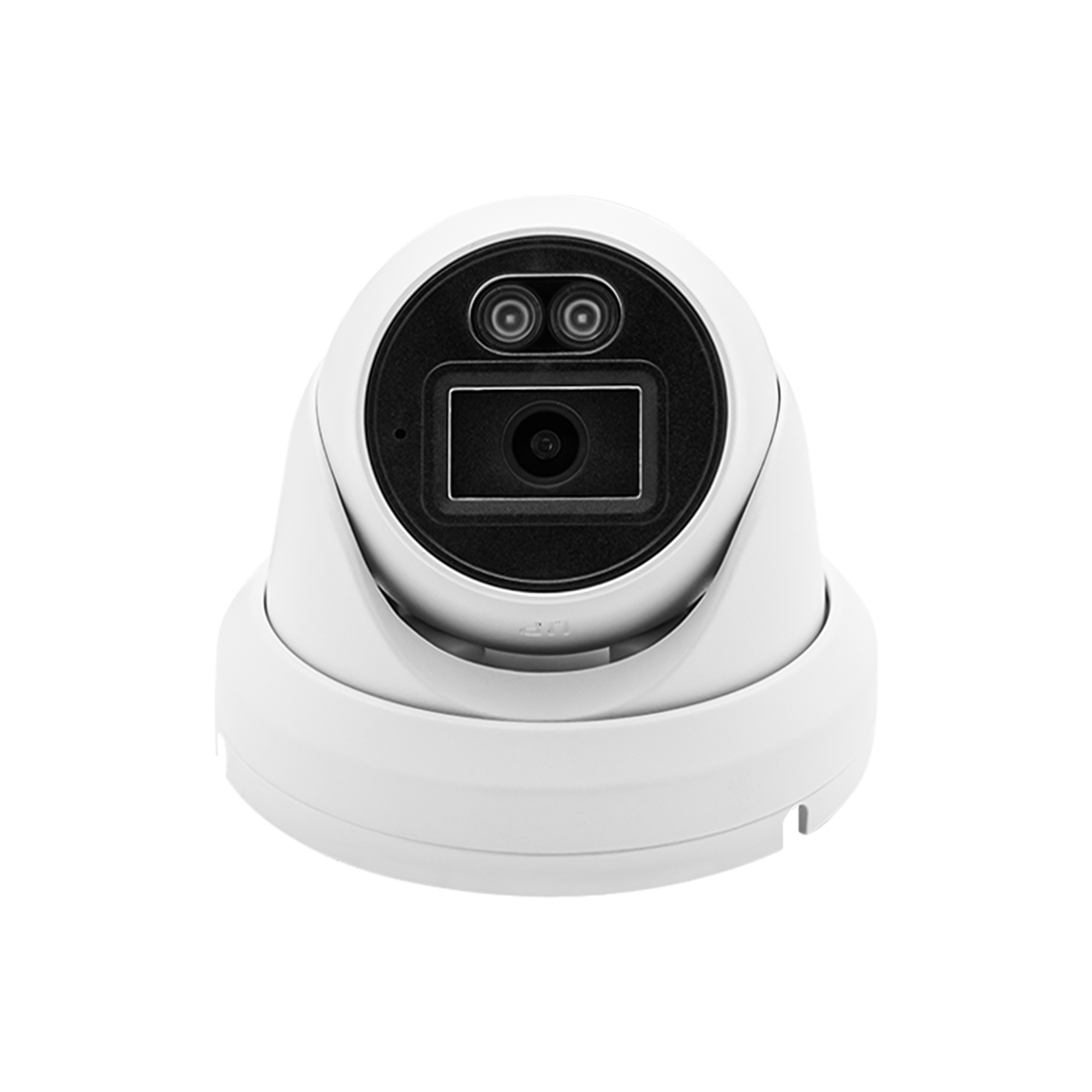

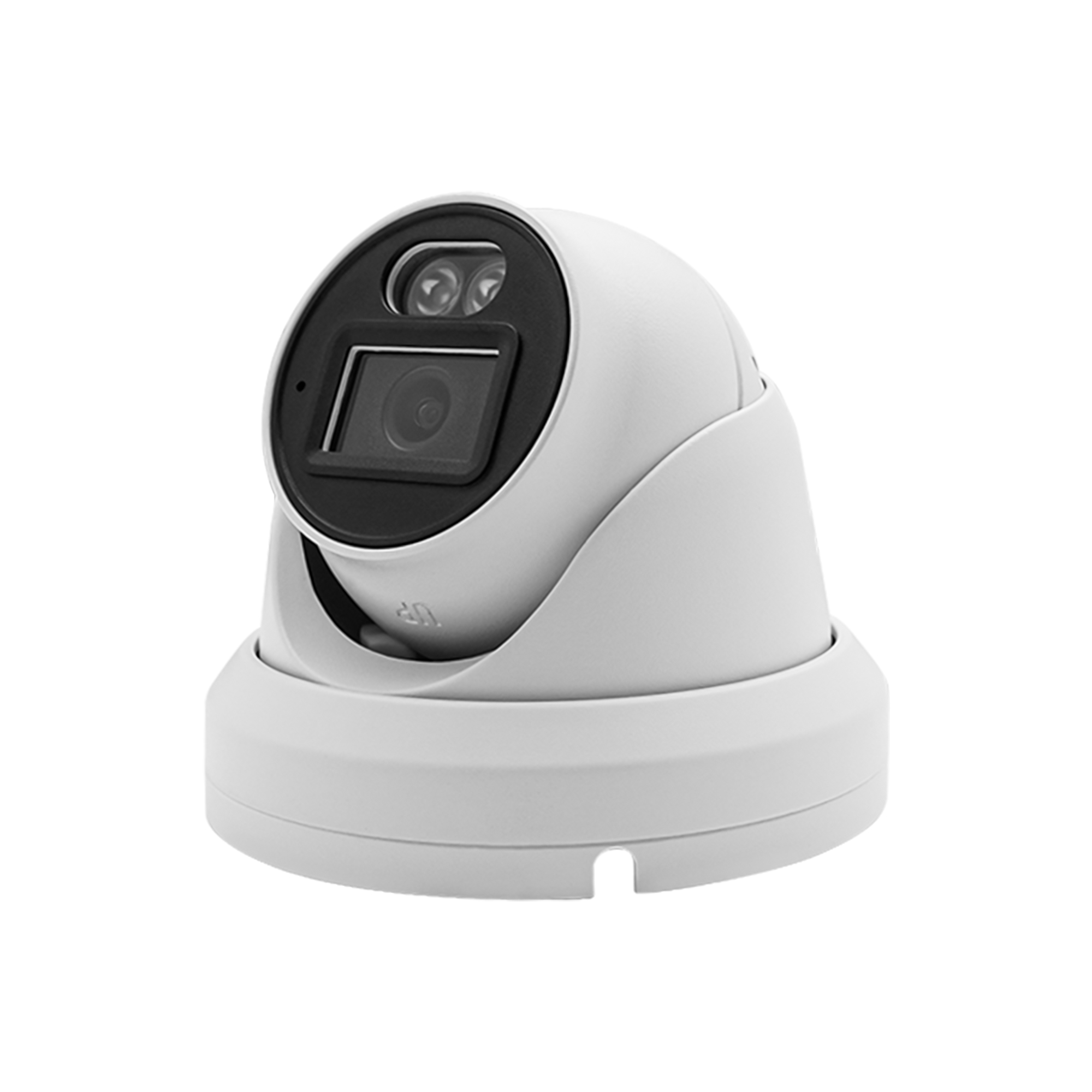

4MP Small Dual-light IP Camera
0 4mp dual-light turret IP camera, 2.8mm lens, built-in PoE, Built-in Mic, metal, waterproof- SKU: IP4MD93BDL
- Categories:Full Color/Dual light, POE IP Camera
Key features:
- 1/3″ CMOS sensor
- 4MP HD resolution output
- Ultra low illumination 0.01Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Human Detection, Privacy Mask, Flip
- RTSP and Onvif 17.06 compatible
- 265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- RJ45 100mbps network port, IEEE802.3af PoE
- Lightning protection 4000V
- Strong water-proof housing, IP66
- 2pcs IR&Warm lights, distance 20-30 meters
- 8 mm F1.6 fixed lens
- Built-in Mic Option
Specification:
| Model | IP4MD93BDL |
| Camera | |
| Image Sensor | 1/3″ 4MP SC4336P CMOS |
| Effective Pixels | 2560(H)×1440 (V) |
| Electronic Shutter | AUTO, 1/10s ~ 1/100000s |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Light Control | Auto/Manual, Mode switch, Brightness level, OFF, Light ON Illumination |
| License Plate Mode | Yes |
| Other | Multi-lines OSD, Privacy Mask, Flip, Reset |
| Encode | |
| Embedded Solution | SSC377 |
| Video Standard | H.264/H.265/H.265+ |
| Video Resolution | Main Stream: |
| 25fps@4MP(2560×1440)/3MP(2304×1296)/1080P/720P | |
| Sub stream: 30fps@360P/CIF, etc. | |
| Video Bitrates | 64Kbps – 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a/AAC |
| Built-in Mic | Yes |
| Smart Detection | |
| Motion Detection | Support |
| Target Detection | Human Detection |
| Led | |
| Led | 2 pcs IR&warm-light Led |
| Distance | 20-30M |
| Lens | |
| Focal length | F1.6 2.8mm fixed |
| Language | |
| English, simplified Chinese, Chinese Traditional, Deutsch, Italian, Turkish, Polish, Korean, Japanese, Russian, Ukrainian, Persian. | |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/RTMP, etc. |
| P2P | Yes |
| Web | IE, Firefox, Chrome, Edge, Safari, etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps |
| Power Supply | 12 VDC ± 10% |
| POE | 802.3af/at 48V |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
