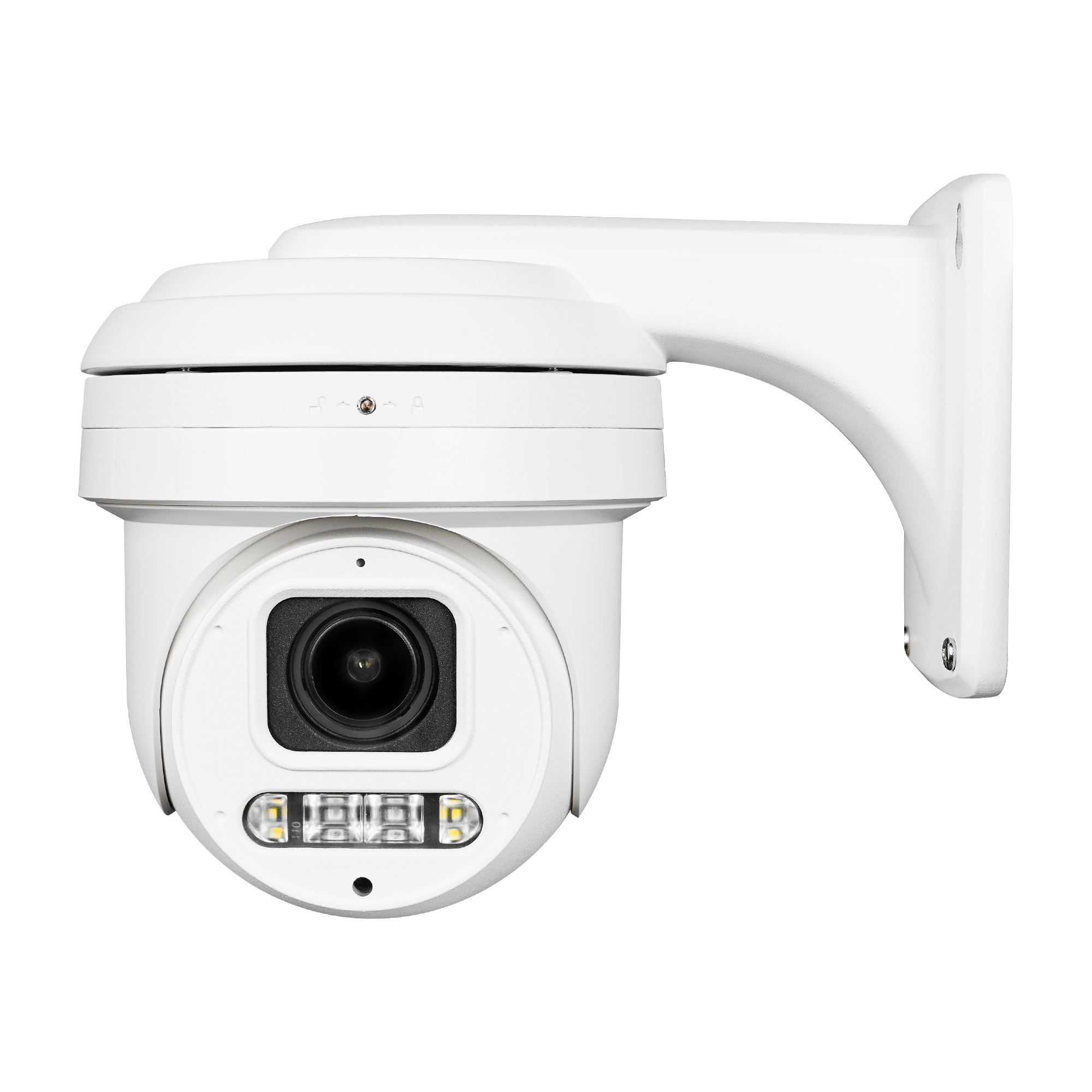

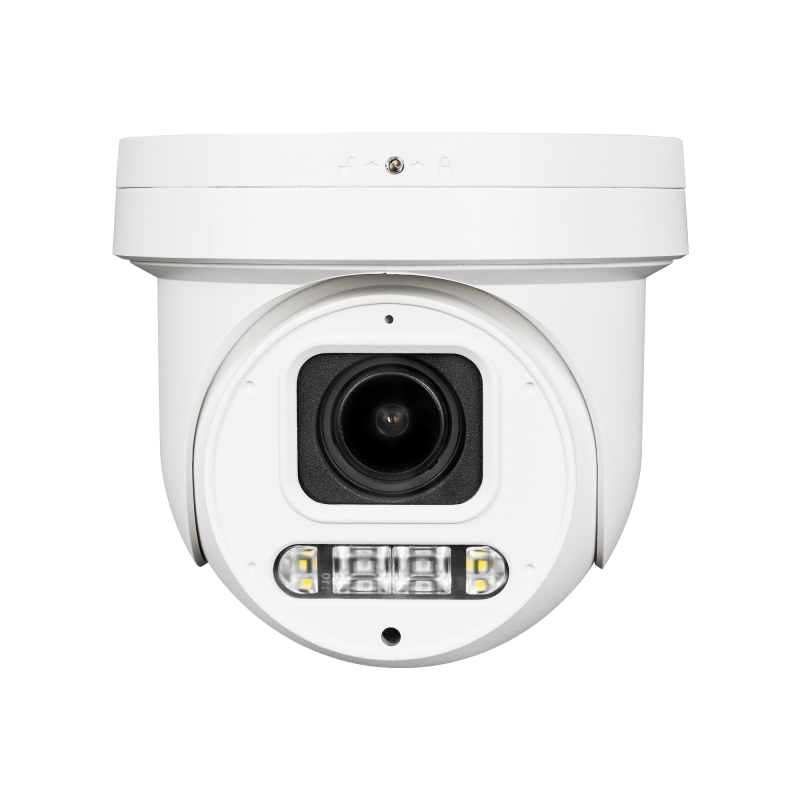

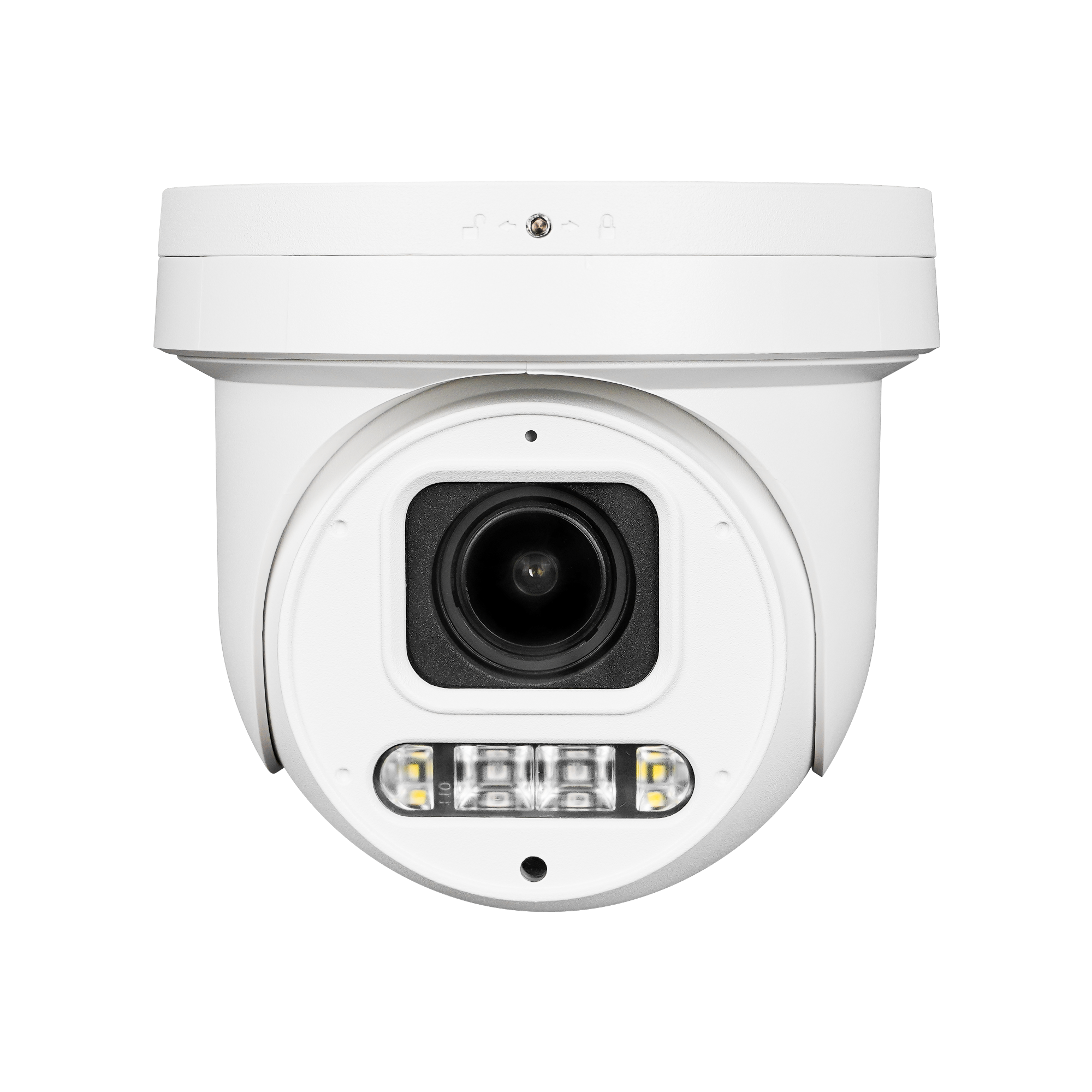

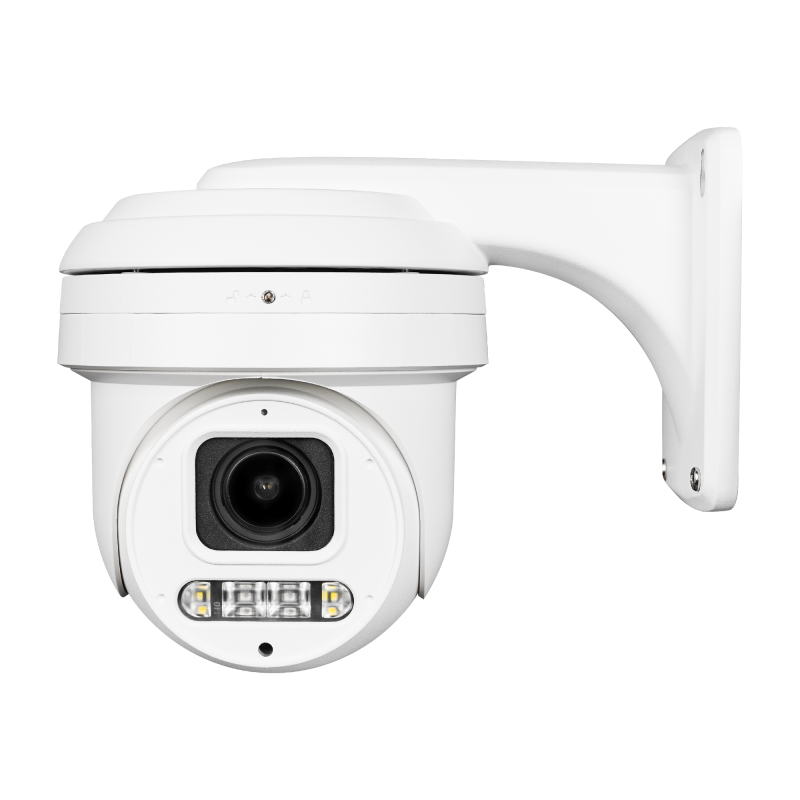

6MP 3072*2048 Resolution active deterrence 5X PTZ Camera. 2.7-13.5mm motorized lens 5x optical zoom.
| Model | IP6MPDPTZ5X |
| Camera | |
| Image Sensor | 1/2.8″ Sony CMOS |
| Effective Pixels | 6 megapixels |
| Electronic Shutter | AUTO, 10-10000/min |
| Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on |
| Day/Night | Auto/Color/(B/W)/Timing |
| WDR | Digital WDR |
| White Balance | Auto/Manual |
| AGC/BLC/HLC | Support |
| DNR | 2D/3D DNR |
| Other | AGC,Motion Detection,Privacy Mask,Flip,OSD overlay |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: |
| 25fps@6MP(3072×2048)/25fps@5MP(2592×1944)/4MP(2592×1520)/3MP, 30fps@1080P/720P | |
| Sub stream: 25fps@D1/VGA/360P/CIF, etc. | |
| Video Bitrates | 512Kbps – 8Mbps, VBR/CBR |
| Audio Standard | G.711-u/G.711-a |
| Built-in Mic | Yes |
| IR Led | |
| IR Led | 4 pcs Array IR Led |
| IR Distance | 30-35 Meters |
| Lens | |
| Focal length | 2.7-13.5mm motorized AF lens |
| Zoom | 5x optical zoom |
| Function | |
| PoE, Mic, Human body detection, two-way audio, build-in siren | |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 280°; Tilt: 0° ~ 90° |
| Preset Point | 8 |
| Manual Control Speed | Pan: 0.5° ~15° /s |
| Power-off Recovery | Support |
| Network Services | |
| Protocol | HTTP/RTSP/FTP/DST/SMTP/DHCP/NTP/NFS, etc. |
| P2P | Yes |
| Web | IE , Firefox (32bit esr), etc. |
| Media | CMS, Android, IOS |
| ONVIF | 17.06 compatible |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE optional |
| Power Supply | Default: PoE (12V DC ± 10% optional) |
| Power Consumption | < 10 W |
| Operating Temp. | -30 °C-(+60) °C, 10%-90%RH |
