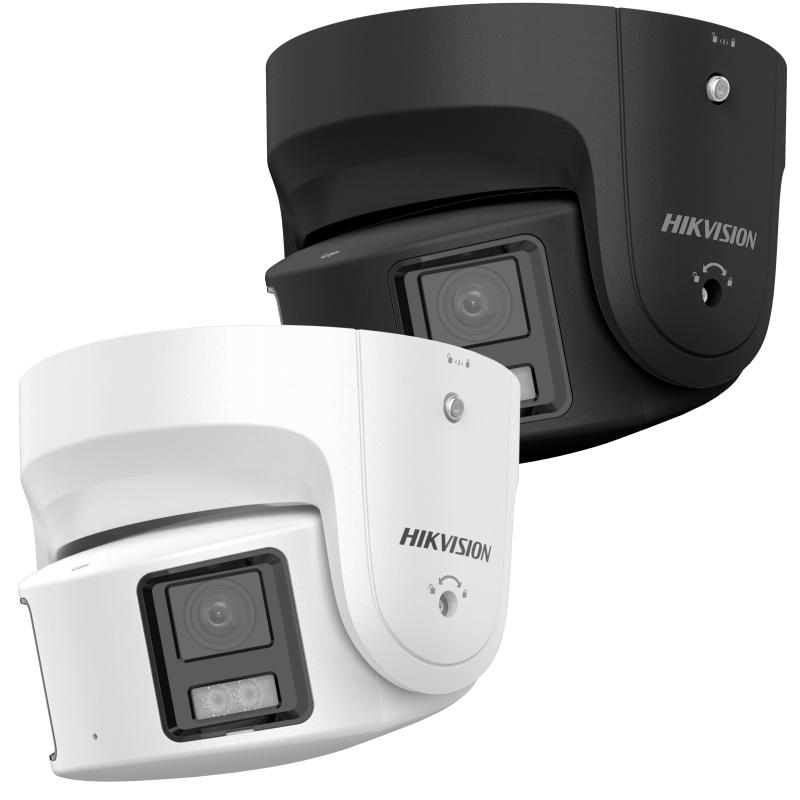

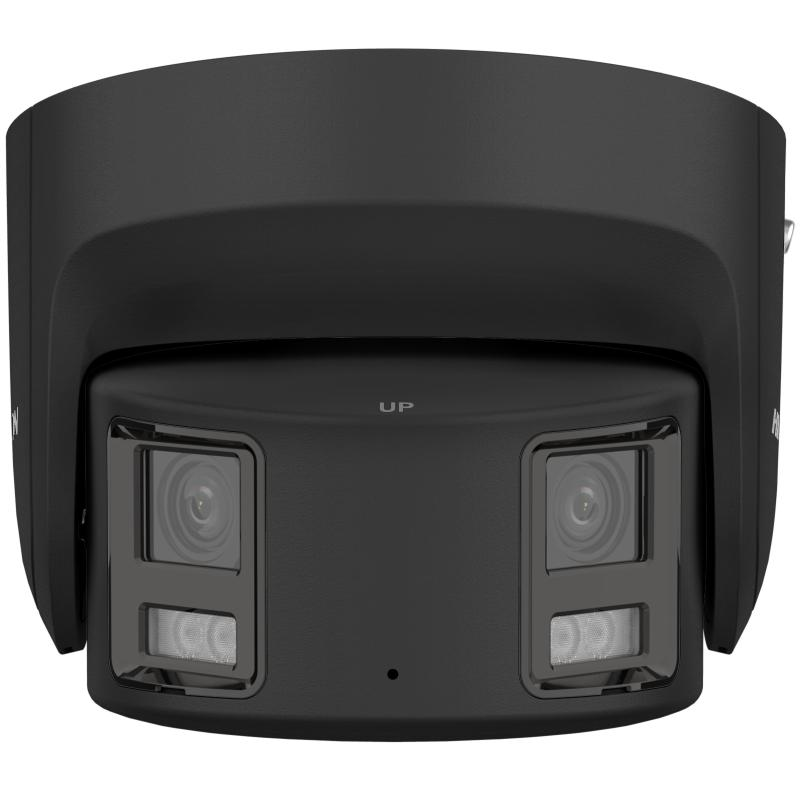

8 MP Panoramic ColorVu Fixed Turret Network Camera
0 8 MP Panoramic ColorVu Fixed Turret Network Camera- SKU: DS-2CD2387G2P-LSU/SL
- Category:OEM Camera
Key Features:
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
* High quality imaging with 8 MP resolution
* One image that presents all the scenes covered by the camera
* 24/7 colorful imaging
* Efficient H.265+ compression technology
* Clear imaging against strong back light due to 130 dB WDR technology
* Focus on human and vehicle classification based on deep learning
* Active strobe light and audio alarm to warn intruders off
* Water and dust resistant (IP67)
| Camera | |
| Image Sensor | 2 × 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 5120 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0°to 30°, tilt: -75° to 75° |
| Lens | |
| Lens Type | Fixed focal lens, Dual lens: 4 mm |
| Focal Length ＆ FOV | 4 mm, horizontal FOV: 180°, vertical FOV: 44° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 3.6 m to ∞ |
| DORI | |
| DORI | 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Illuminator | |
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video | |
| Main Stream | When WDR is On: |
| 50 Hz: 12.5 fps (5120 × 1440) | |
| 60 Hz: 15 fps (5120 × 1440) When WDR is Off: | |
| 50 Hz: 20 fps (5120 × 1440) | |
| Sub-Stream | 60 Hz: 20 fps (5120 × 1440) |
| When WDR is On: | |
| 50 Hz: 12.5 fps (1920 × 536, 960 × 272) | |
| 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: | |
| 50 Hz: 20 fps (1920 × 536, 960 × 272) | |
| 60 Hz: 20 fps (1920 × 536, 960 × 272) | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, |
| Sub-stream: H.265/H.264/MJPEG | |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722. 1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets |
|
| Protocols | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users |
| 3 user levels: administrator, operator, and user | |
| Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark,
IP address filter, basic and digest authentication for |
|
| HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,
RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
|
| Security | |
| NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR, | |
| Network Storage | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Plug-in required live view: IE 10, IE 11 , | |
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, |
| Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ | |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB |
| 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ,
interface type: non-equilibrium, |
|
| Audio | 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω,
interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC, 1 A) |
| Reset Key | Yes |
