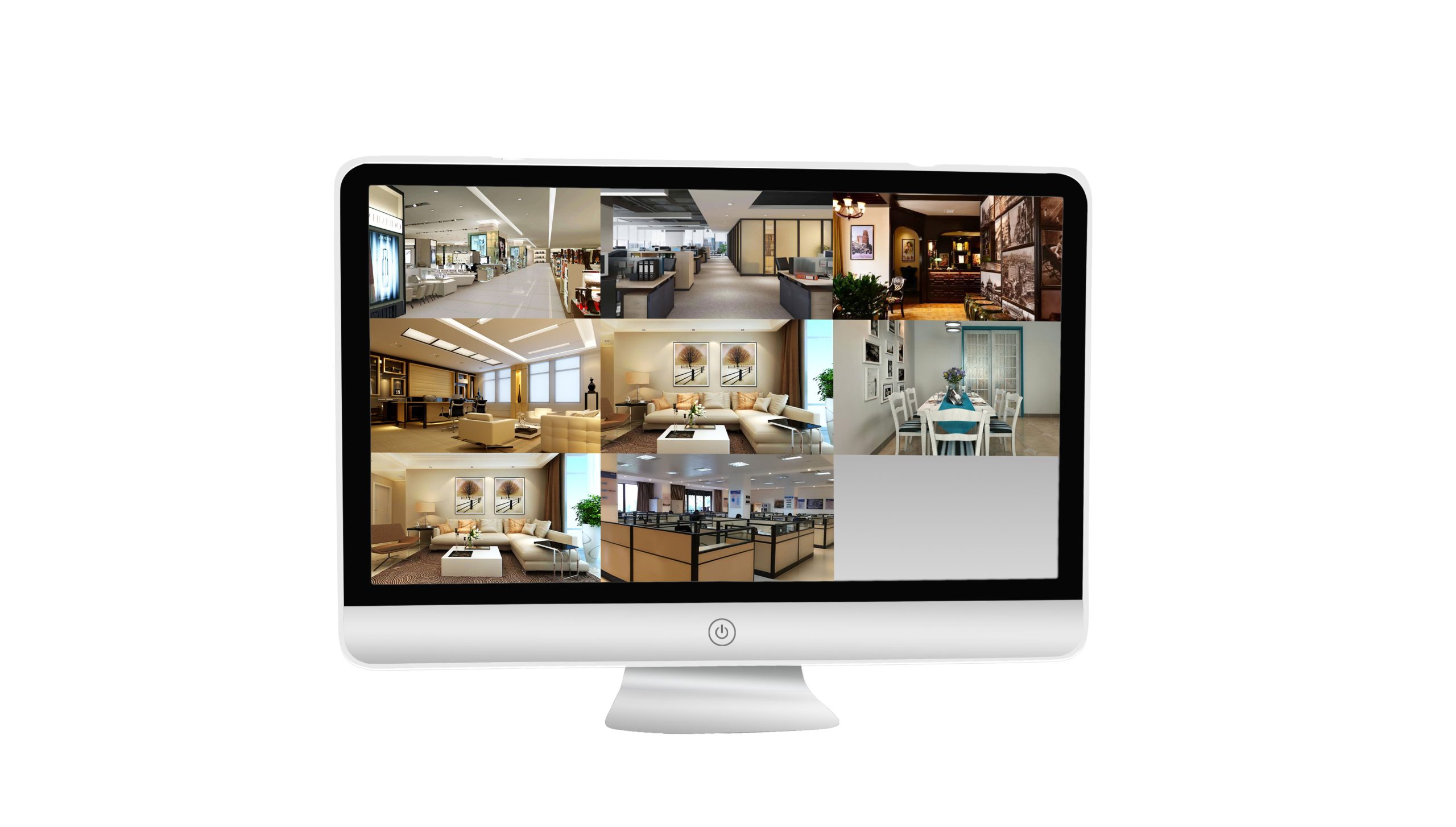

8CH 4K PoE NVR+ Monitor Combo
0 8CH PoE NVR+ 15.6-inch monitor all-in-one security system. Support up to 8pcs 4K IP Camera.- SKU: NVR4K08H1-P-L-Combo
- Category:POE NVR
- Tag: #poenvr #securitysystem
Key features:
Support Ultra 265/H.265/H.264 video formats
8 PoE Port + 1 LAN port
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1-ch HDMI, HDMI at up to 4K(3840×2160) resolution
Up to 4K resolution recording
1 SATA HDD up to 8TB
Support cloud upgrade
Specification:
| Model | NVR4K08H1-P-L-Combo |
| Video/Audio Input | |
| IP Video Input | Max. 8-ch |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: |
| 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8-ch |
| Liveview display | 1/4/6/8 |
| Corridor Mode Screen | 3/4/5/7/9 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, |
| 4 x 5MP@25 | |
| 4 x 4MP@25 | |
| 4 x 3MP@25 | |
| 4 x 1080p@30 | |
| 8 x 720p@30 | |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each disk |
| (The maximum HDD capacity varies with environment temperature) | |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection |
| VCA Search | Behavior Search |
| Smart Intrusion Prevention (SIP) by Camera | 4-ch(supports channel 1-4; Alarm only, no image) |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Audio in | NA |
| Audio out | 1 RCA |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE | |
| Interface | 8 RJ-45 10M/100M |
| Max Power | Max 30W for single port |
| Max 75W in total | |
| Standard | EEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 48V DC |
| Power Consumption: ≤20 W (without HDD) | |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
