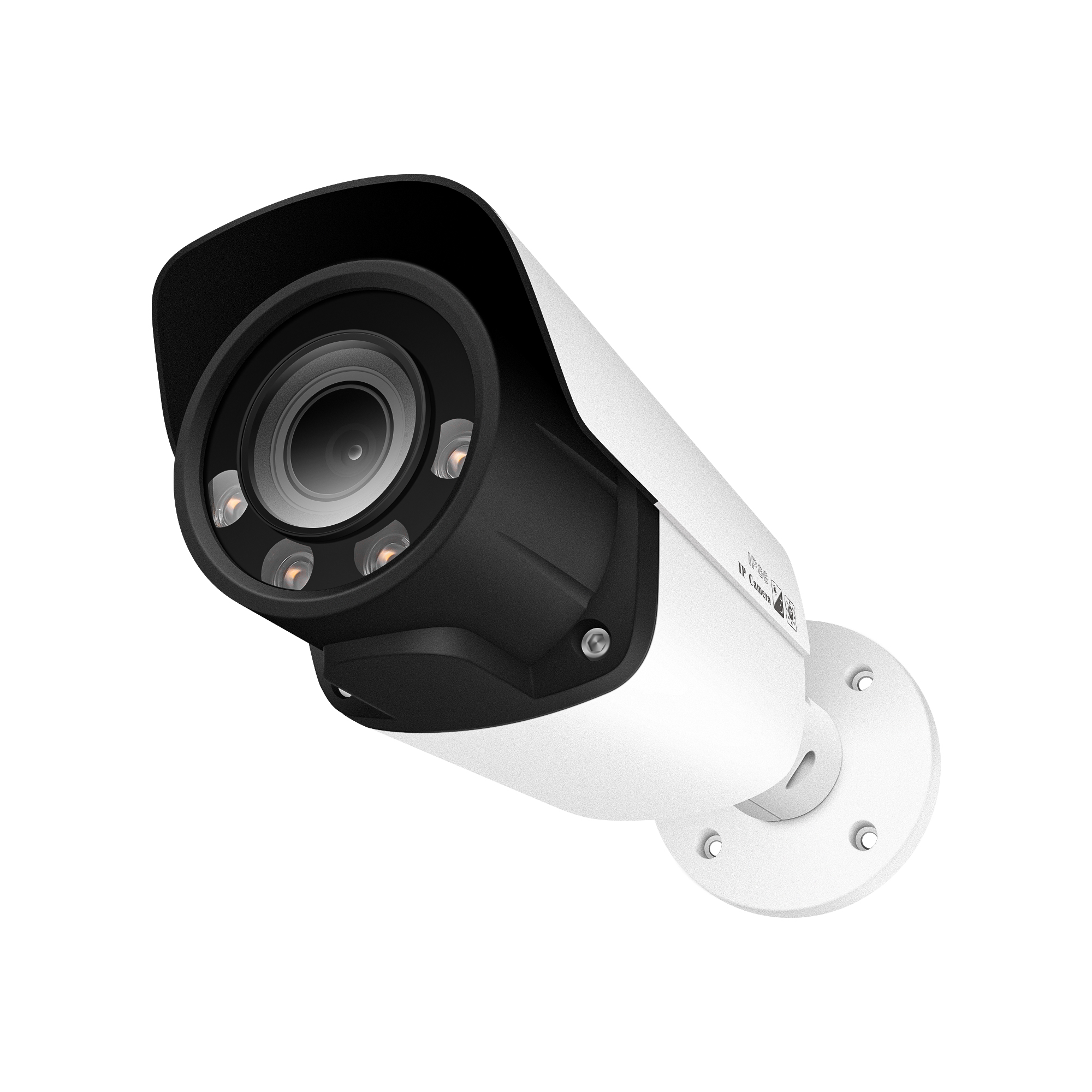

8MP VCA AI Face Detection Human & Vehicle Detection 24/7 Colorful PoE Bullet IP Camera
0 Smart AI 8MP Full-color IP Camera, built-in PoE, Mic, face detection, Intrusion detection- SKU: SA-IP8MLB56FC
- Categories:Full Color/Dual light, POE IP Camera
Features:
- 24/7 Colorful Imaging
- 1/2.7″ CMOS sensor
- 4K resolution 3840 x 2160P
- Face Detection,Human&Vehicle Detection, Line Crossing, Area Entry/Leaving Detection, Area Intrusion Detection
- Low illumination 0.01Lux
- Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
- Motion Detection,Privacy Mask, Flip
- RTSP and Onvif 12Compatible
- 265/ H.264 Dual-stream Media Server
- Easy-to-use P2P Cloud Service
- Multi web browser, PC Client, Mobile APP,Remote access
- RJ45 100mbps Network Port, IEEE802.3af PoE
- LightningProtection 4000V
- Strong Water-proof Housing, IP67
- 4PCS Warm Light, LightDistance 30-40 meters
- 8mm F1.0Fixed Lens
- Internal Microphone Optional
AI Features:
Human Body & Vehicle Detection; Cross Line, Intrusion, Enter Area, Leave Area, Face Detection
Specification:
| Model | SA-IP8MLB56FC |
| Camera | |
| Image Sensor | 1/2.7″ 8MP GC8613 CMOS |
| SoC Chip | Sigmastar SSC378DE |
| Effective Pixels | 3840(H)×2160 (V) |
| Exposure Shutter | AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
| Day/Night | Auto(Active/passive/schedule)/Day/Night, switch threshold,
sensitivity, anti-flicker(Auto/50Hz/60Hz) |
| Image Adjust | Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
| White Balance | AWB/MWB |
| Light Control | Auto/Manual, Brightness level (0-100%) adjustable |
| DNR | 2D/3D DNR |
| Encode | |
| Video Standard | H.264/H.265 |
| Video Resolution | Main Stream: |
| 20fps@8MP(3840×2160),30fps@6MP(3072×2048)/5MP(2592×1944)/
4MP(2560×1440)/3MP(2304×1296)/1080P/720P |
|
| Sub stream: | |
| 10fps@720P,30fps@D1(704×576)(default)/(720×480)/
VGA(640×480)/QVGA(640×360) |
|
| Video Bitrates | Main stream: 64kbps-8Mbps |
| Sub stream: 64kbps-2048kbps | |
| VBR/CBR , quality(1-9), GOP(1-128) | |
| Image Snapshot | Sub Stream(SD) snapshot |
| Image Rotation | 0 / 90 / 180 / 270 degree adjustable |
| Border Crop | X crop, Y crop |
| Image Mirror | horizon / vertical / horizon&vertical adjustable |
| OSD Overlay | Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
| Privacy Mask | 4 areas |
| Region of Interest | ROI: Each stream support 8 areas |
| Audio Standard | G.711-u/G.711-a/AAC/PCM, AEC |
| Built-in Mic | Optional |
| Led | |
| Light | 4PCS Warm Light |
| Light Distance | 30-40M |
| Lens | |
| Focal length | 2.8 mm F1.0 Fixed Lens |
| Language | |
| English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian,
Turkish, Ukraine, Russian, etc |
|
| Smart Detection | |
| Motion Detection | Yes |
| Digital IO Alarm | 1 pair Alarm-in/Alarm-out, normally open/normally close (optional) |
| Human Vehicle Detection | Yes, (2-20 meters) |
| Cross Line Detection | Yes, 4 lines |
| Perimeter protection | Yes, 4 areas |
| Face Detection | Yes, (1-5 meters) |
| Target Detection Type | Human Shape, vehicle, non-motor vehicle, Pet, Face (12px-1000px) |
| Trigger Action Linkage | Snapshot, Record, Relay optional, White LED Flash, Email, FTP, NAS storage (NFS) |
| Simultaneous Detection | Maximum 16 targets simultaneous detection |
| Storage Type | Schedule/Trigger: Email, FTP, NAS(NFS) |
| Network Services | |
| Protocol | HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/
IPv4/IPv6/NFS/DDNS |
| IP Address Filtering | Yes (Allow list, Deny list) |
| P2P Mobile APP | Android, IOS |
| Web Access | IE, Firefox, Chrome, Edge, Safari, etc. |
| (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) | |
| PC Tool | Windows, Mac |
| ONVIF | 23.12 compatible (profile S G T M) |
| General | |
| Network Port | 1-RJ45, 100Mbps, POE(IEEE802.3af) |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 8 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |
